4 User Interface - M8020A Display Views

M819xA Configuration

This section describes the steps to configure M8195A and M8196A AWGs.

M8195A Configuration

1Click the Configuration... button. Depending upon the available

channels in M8195A, the M8195A Configuration dialog will appear.

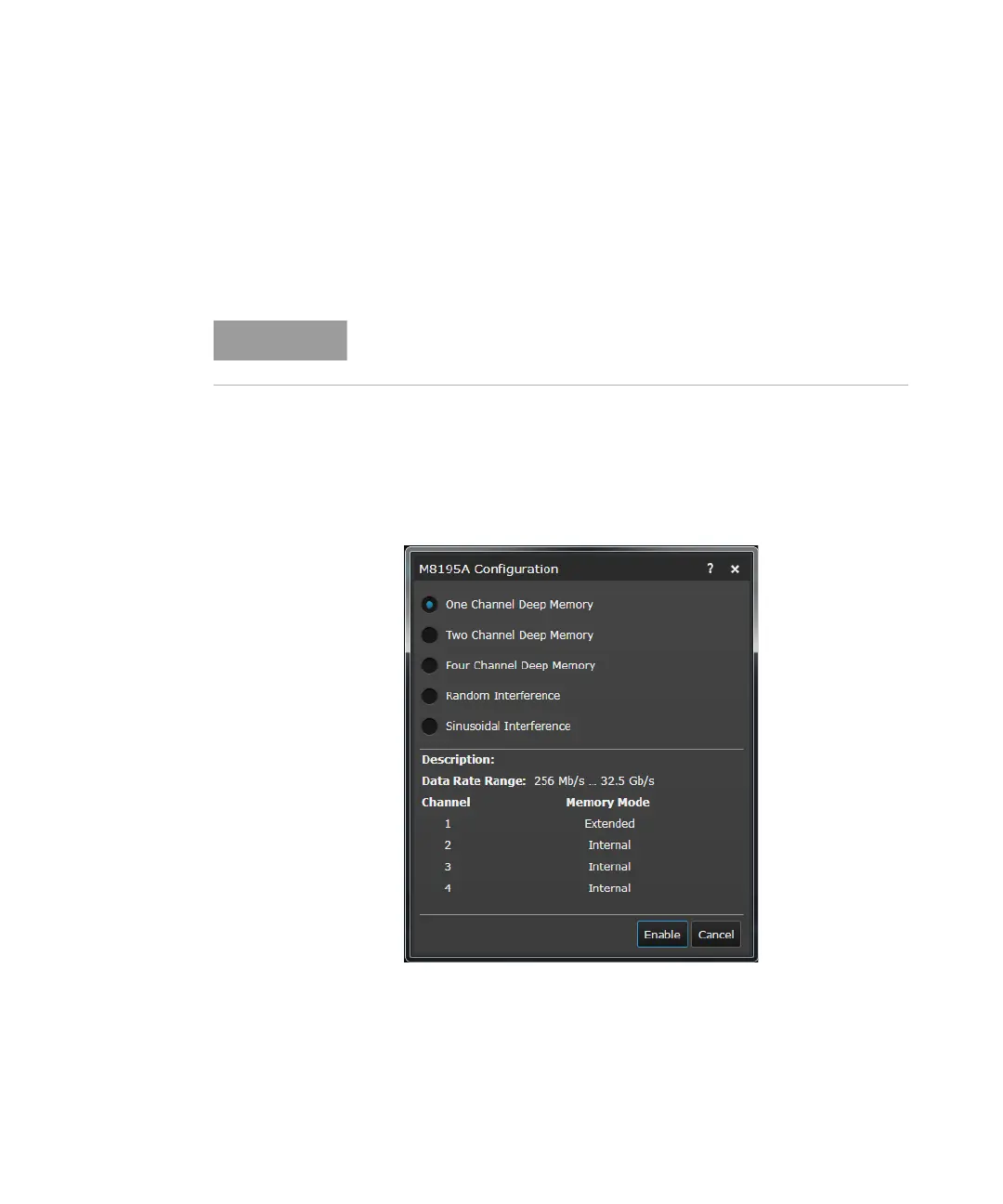

The following figure shows the M8195A Configuration dialog when

four channels in M8195A are available:

NOTE

M8195A Configuration option is not available for M8195A (Rev 1).
