4 User Interface - M8020A Display Views
3 Interference
a ISI
b CMI
c DMI
4 Related Settings
a SSC
b Clk/2 Jitter
You can view, compare and even to configure the values of Impairments
Source parameters for each channel. For more details on these
Impairment Sources and their respective parameters, please refer to the
chapter Setting up Generator on page 249.
Viewing Options in the Impairment Setup View

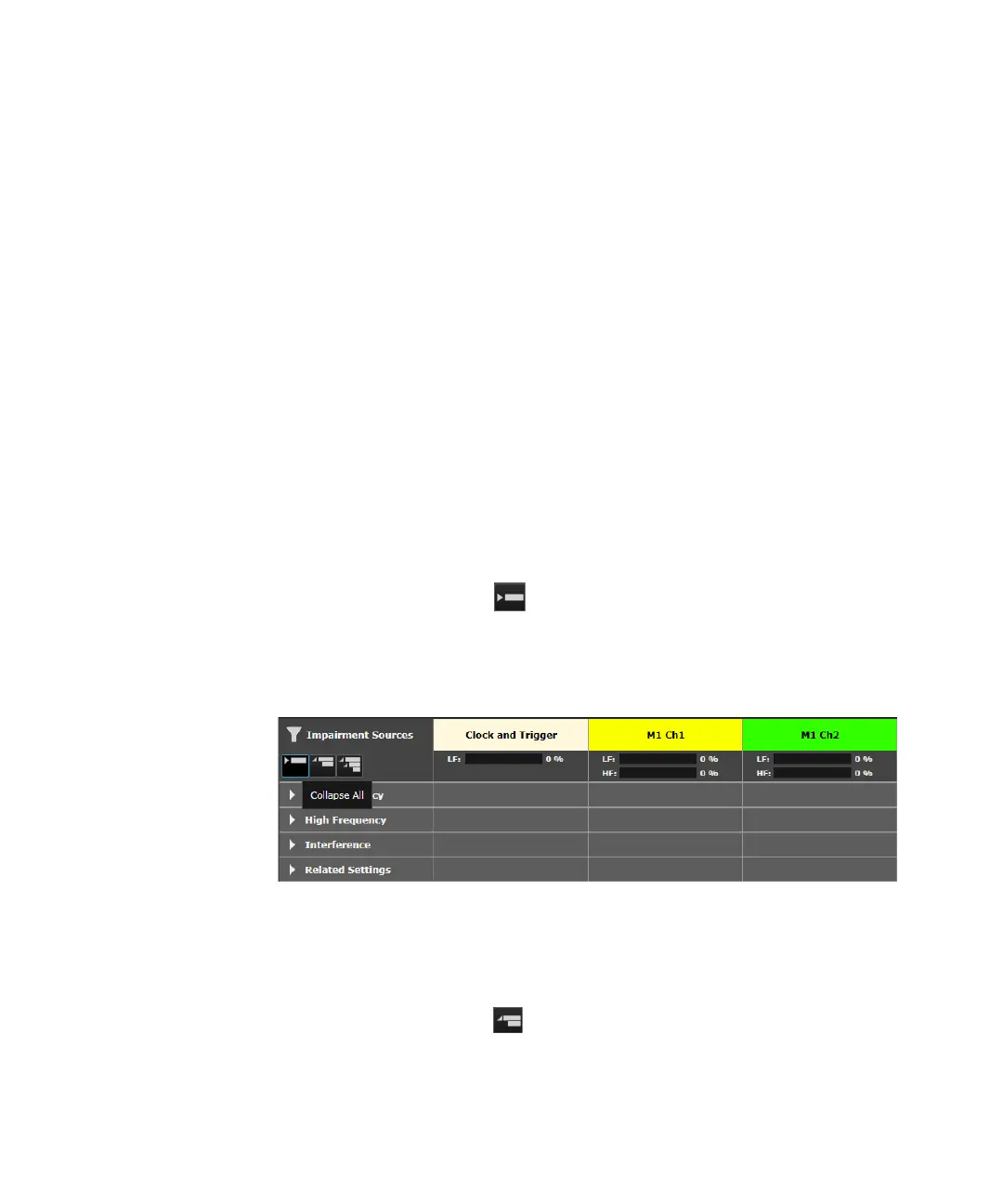

The Impairment Setup View provides the following viewing options:
• Collapse All
This is the default viewing option of the tabular view.
Click on the button to collapse the Impairment Sources rows,
such that only the top-level hierarchy is displayed. In other words, in
this view option, the options under each Impairment Source for the
corresponding Data Out, Clock and Trigger of a channel are hidden.
• Expand Level 2 Groups
This is one-level expansion of the tabular view.
Click on the button to view options available under Impairment
Sources. This view allows you to enable/disable the Impairment
Sources options for corresponding channel.
