User Interface - M8020A Display Views 4
Under each column's header, there are Low Frequency (LF) and High
Frequency (HF) usage indicator. The Clock and Trigger has a Low

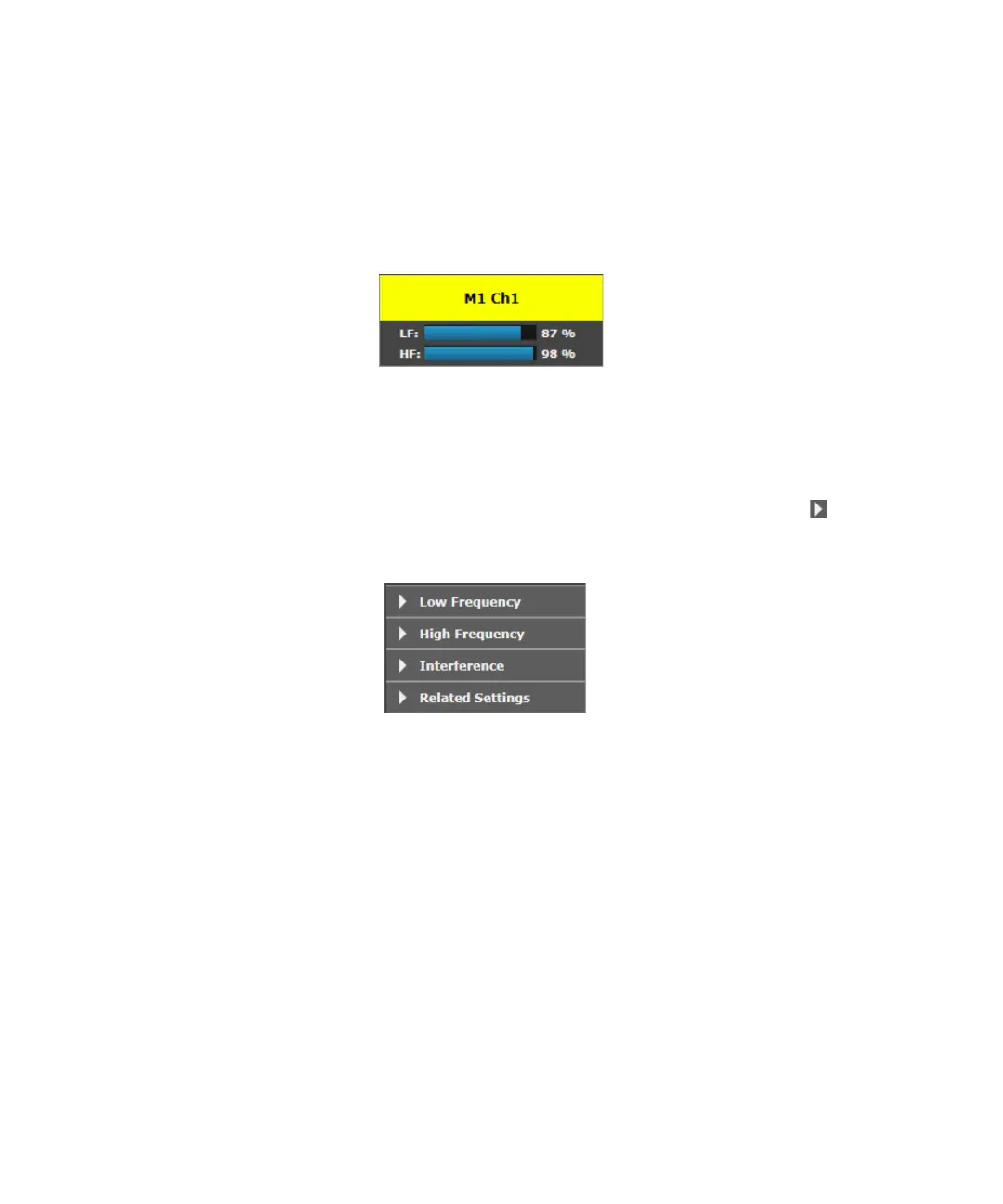

Frequency indicator only. The following figure shows LF and HF indicator
for channel 1 of module 1 (M1 Ch1):
These indicators display how much low frequency and/or high frequency is
applied on each channel in percentage.
Rows
The Impairment Sources form the rows in the tabular matrix and have a
hierarchical structure. To expand and view the options, click to the left
of each Impairment Source.
The following list shows the Impairment Sources and their respective
options that are available in the Impairment Setup View.
1 Low Frequency (Jitter)
a PJ
b rSSC
2 High Frequency (Jitter)
a PJ 1
b PJ 2
c BUJ
d RJ
e sRJ
f Sweep
