180 Keysight M8000 Series of BER Test Solutions User Guide
4 User Interface - M8020A Display Views
How to set parameters in Impairment Setup View
To enable an option for an Impairment Source corresponding to a Channel
or Clock and Trigger, select the check-box for the corresponding setting.

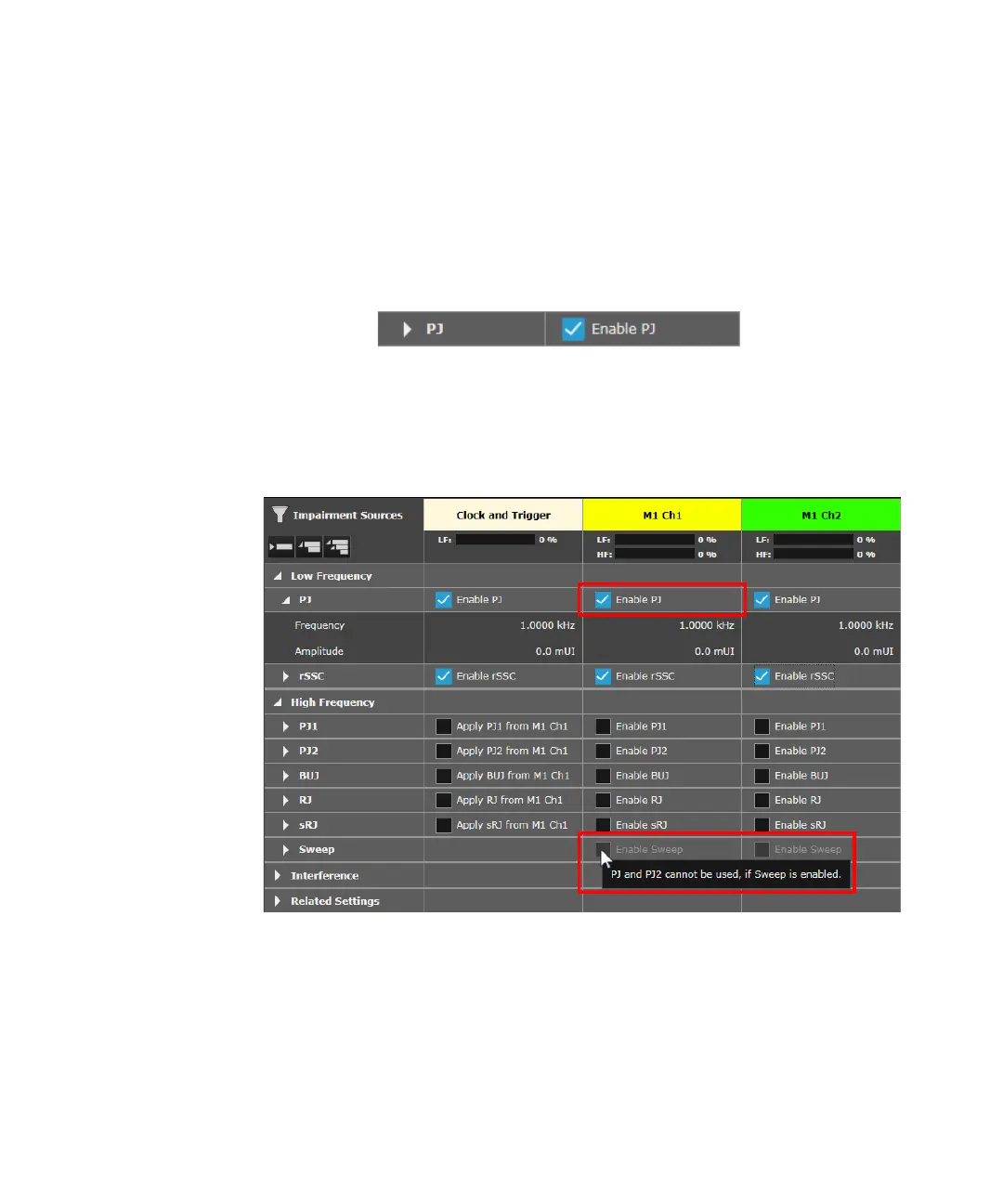

To disable the option, unselect the check-box. The following shows an
example how to enable the PJ option:
Some options available under the impairment sources are dependent on
each other, such that enabling one or more option disables other options.
Hover the mouse cursor on the tabular cells to understand the relational
impact of such options, as shown in the example below.
The following are the dependencies which should be followed while
configuring parameters:
• Sweep cannot be enabled if PJ is enabled.
• sRJ cannot be used if BUJ is enabled.
• RJ and BUJ cannot be used if sRJ is enabled.
• PJ and PJ2 cannot be used if Sweep is enabled.
