7 Setting up Patterns

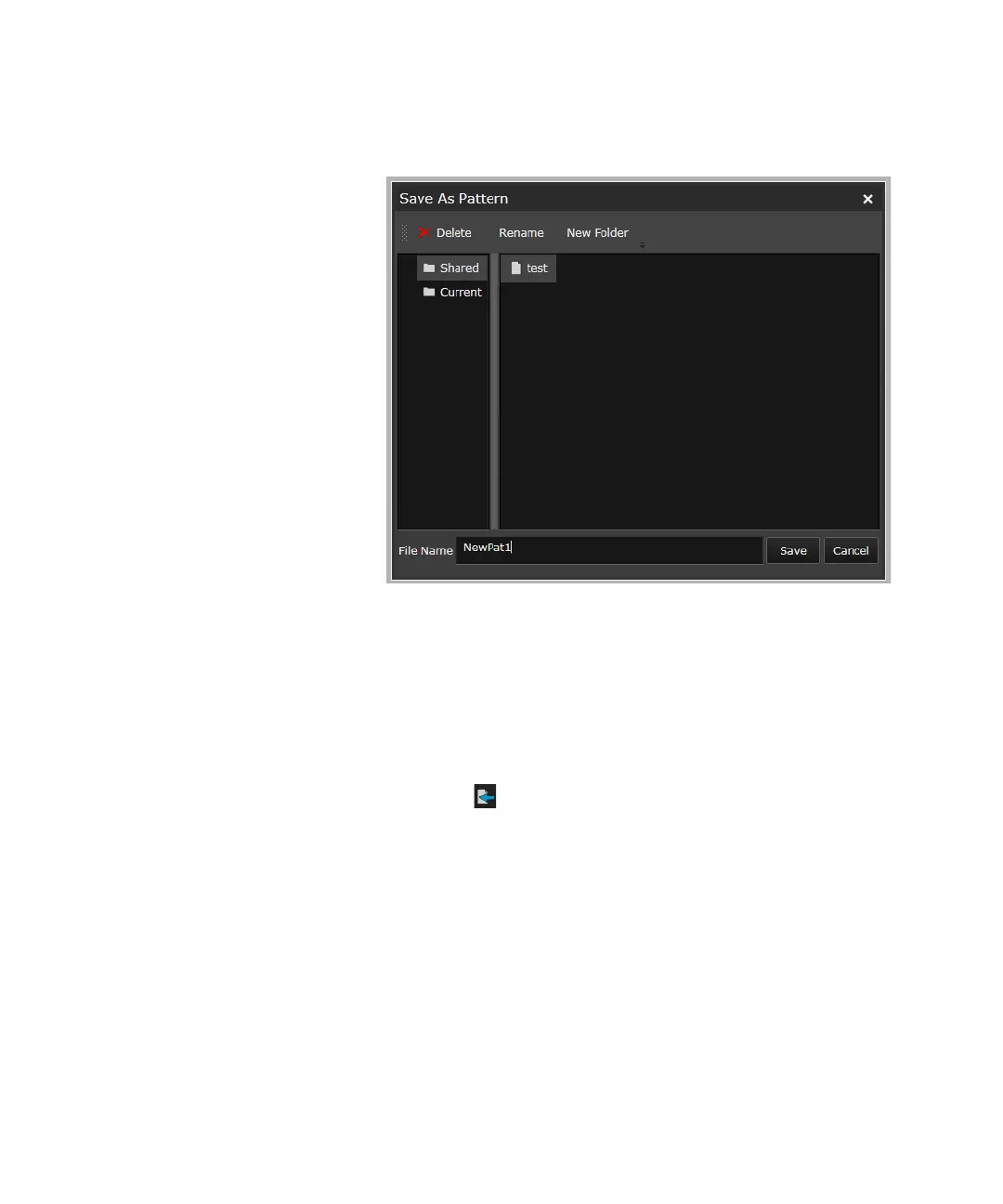

4 Specify the name and location and click Save.
Importing Patterns
The M8070A Pattern Editor allows you to import patterns, edit them and
use it for testing and analysis.
To import a pattern:
1Click the
Import icon. This opens the Select File dialog which
allows you to locate the pattern. You are allowed to import patterns
with any file extension (.ptrn and .txt).
2 Select the pattern and click Open in the Select File dialog.
3 If you import a .ptrn file, skip the step 4 and go to step 5.
4 However, if you import a .txt file, a Select Import Pattern Properties
dialog will appear:
