Keysight M8000 Series of BER Test Solutions User Guide 405
Setting up Patterns 7
• Change the properties of current pattern. Using this option, you can
change the pattern coding and enable/disable Mask, Squelch and
Error as Mask.
The Use Error As Mask option is only visible when the Use Mask option
is enabled and coding is same as captured pattern.

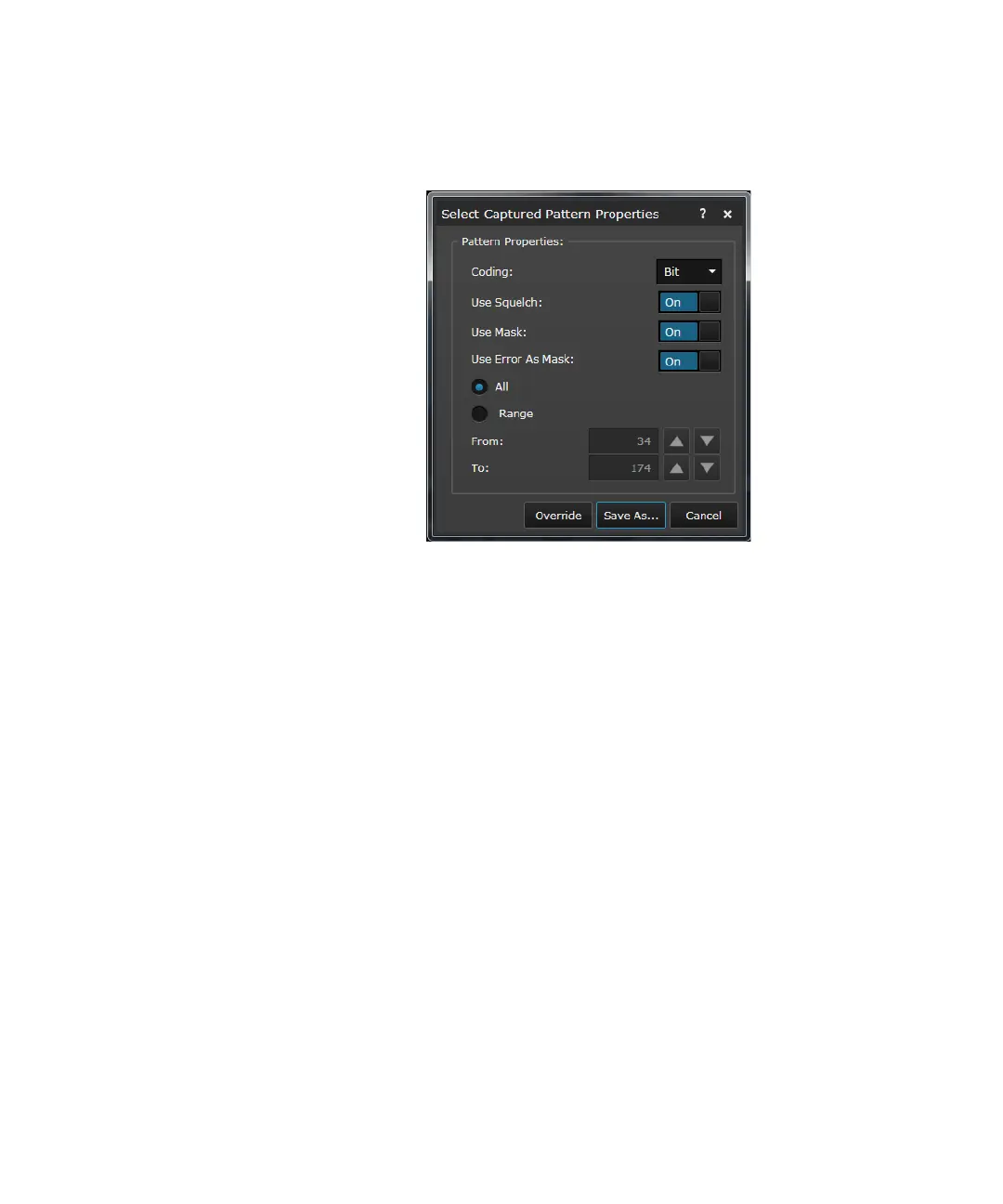

• Change the properties of current captured pattern. Using this
option, you can change the pattern coding and enable/disable
Mask, Squelch and Error as Mask.
• You can save the entire captured pattern or can also provide the
pattern range to be saved.
• Click Override to remove all errors from the pattern.
3Press Save As... button. A standard Save As Pattern dialog box will
appear.
