404 Keysight M8000 Series of BER Test Solutions User Guide
7 Setting up Patterns
2Click on the Save As icon if you wish to change the properties of
current pattern and then save it under different name. The current
pattern can be either a non-captured pattern or a captured pattern.

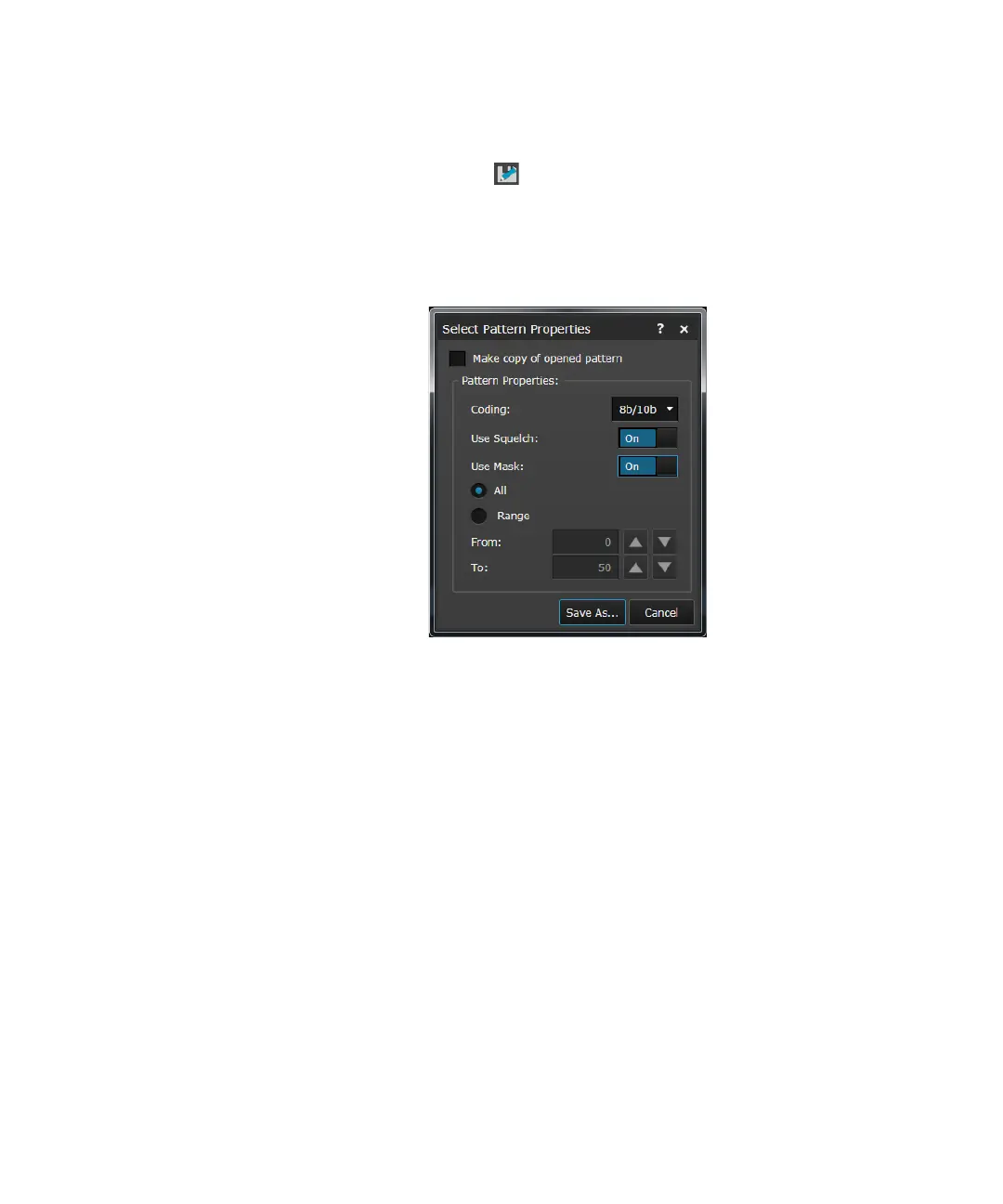

a For saving a non-captured pattern, a Select Pattern Properties
dialog will appear. This dialog provides the following options:
• Make a copy of current pattern with no change in pattern properties.
• Change the properties of current pattern. Using this option, you can
change the pattern coding and enable/disable Squelch and Mask.
• You can save the entire pattern or can also provide the pattern range
to be saved.
b For saving a captured pattern, a Select Captured Pattern
Properties dialog will appear. This dialog provides the following
options:
