186 Keysight M8000 Series of BER Test Solutions User Guide
4 User Interface - M8020A Display Views
Tool bar
The tool bar includes the following elements to perform specific functions:
Table 47
Group View
The Group View allows you to create, edit and delete a group. In addition,
it also allows you to set the properties of functional block of the group.
These features are further described in the upcoming sections of this
chapter.

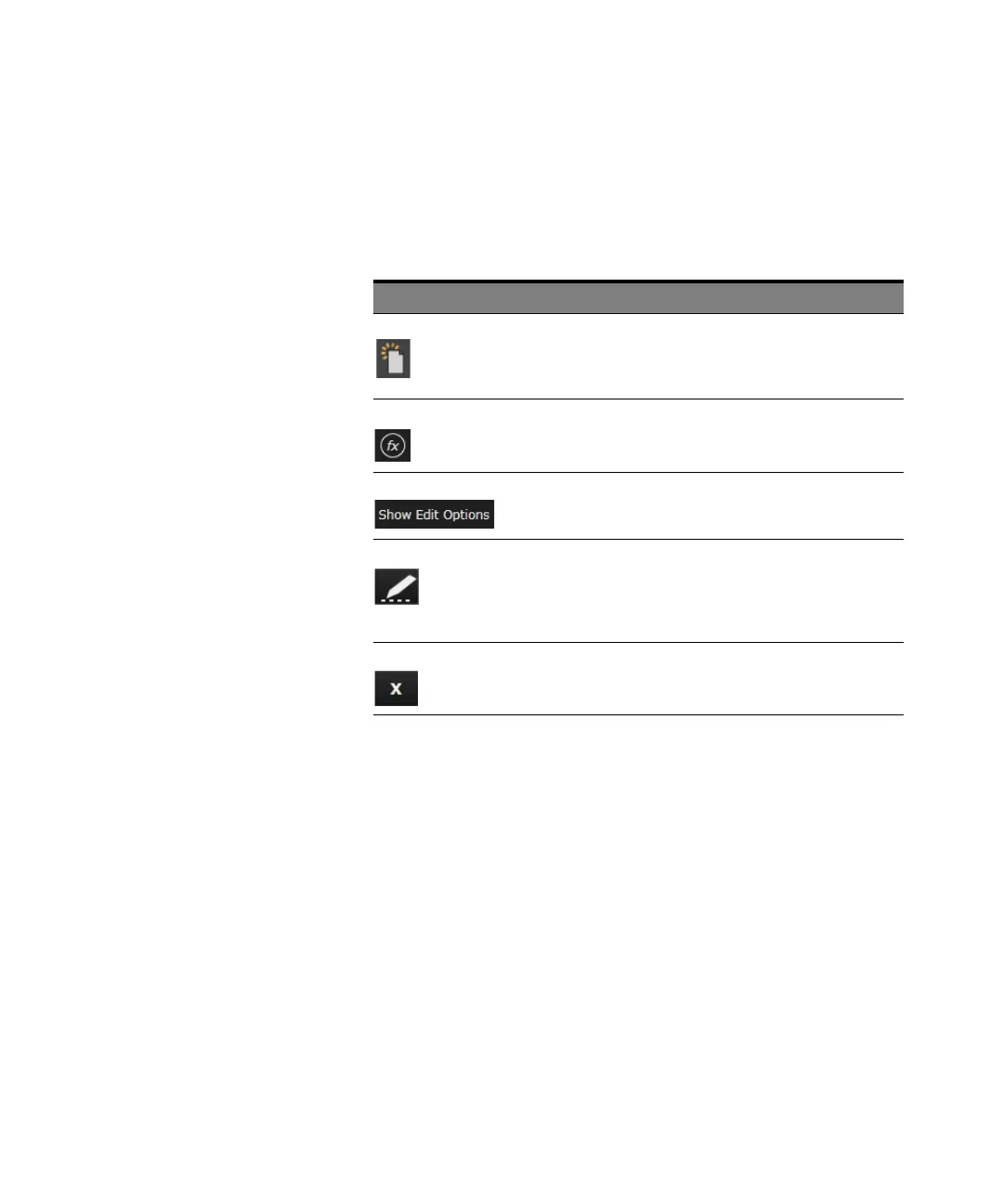

Elements Name Description
Create New
Group
Opens the System Group Editor which allows you to
create a new group. For more details, refer to
Create New Groups in Group View on
page 187.
Show
Functional
Block in Group
Use this toggle button to show functional blocks or
locations in a group.
Show Edit
Options
Use this toggle button to show/hide the group edit
options.
Edit Existing
Group
Opens the System Group Editor which allows you to
edit the group. For details, refer to Edit Existing
Group on page 189.
This icon is only visible when the group is in the edit
mode.
Delete Group Deletes the group.
