The group is represented in the form of ports or locations available in the
group. Once you click on the port or location, the respective properties of
the port or location block are visible in the Parameters window.
The main advantage of the Group View is that it allows you to set the
properties patterns/sequence of similar ports at once.
However, if you set the properties of the similar ports or locations that
exists in different channels of a group, the properties of the ports or
locations will not be applied. If you try to group the properties by clicking
on the header of Group View, the corresponding value in the Parameters
window will either be blank or show “?”.

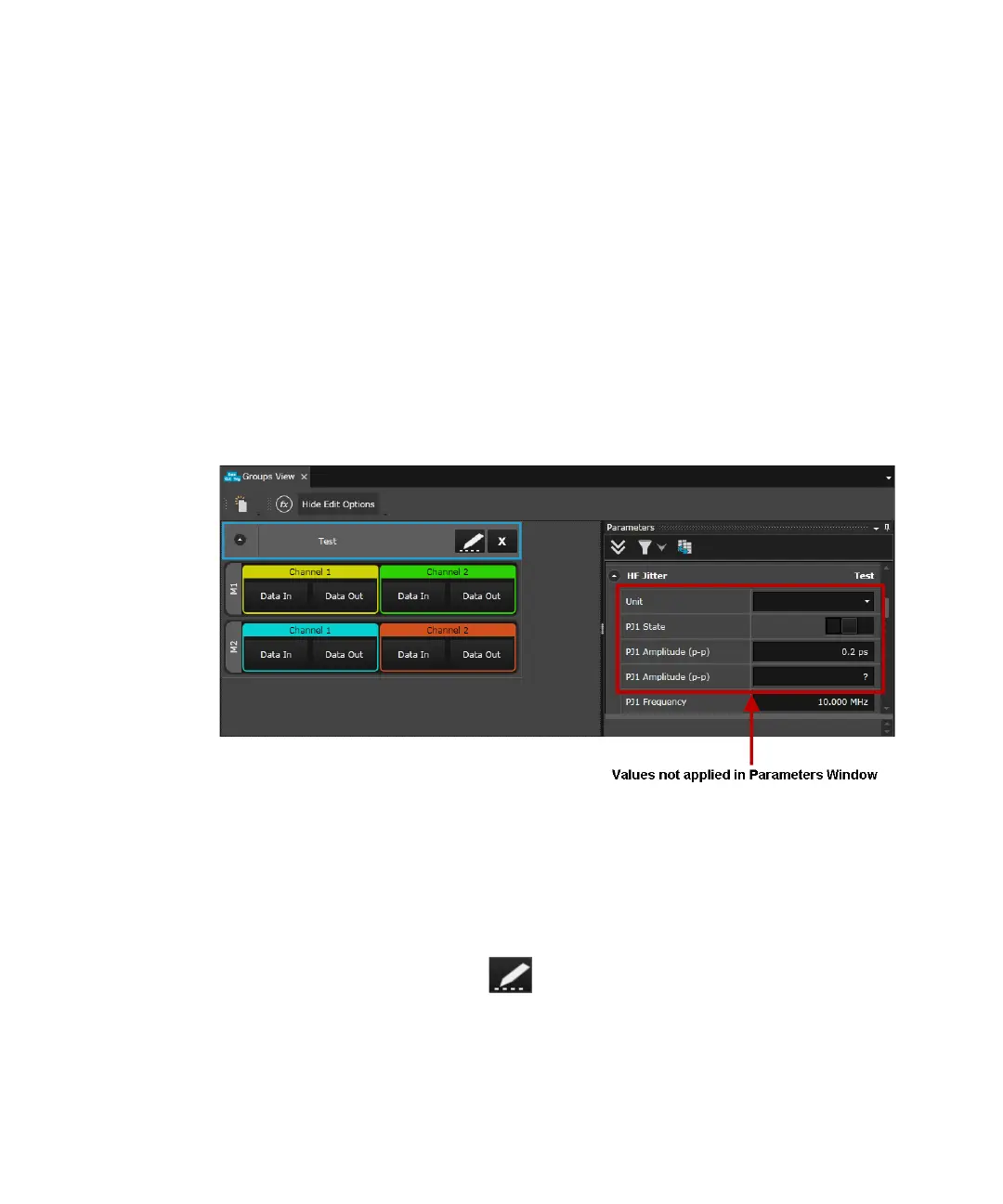

See the following figure:
In this situation, you have to specify the property’s value which will be later
applied to both ports or locations.
Edit Existing Group
To edit an existing group;
•Click on the Edit Existing Group icon. This will open the System
Group Editor window.
