M8061A Configuration
The M8061A Configuration dialog provides configuration settings for
M8061A. To open the M8061A Configuration dialog:
•Go to Menu Bar > System and then click Module View.
• Locate the M8061A module.
•Click Configuration... button.

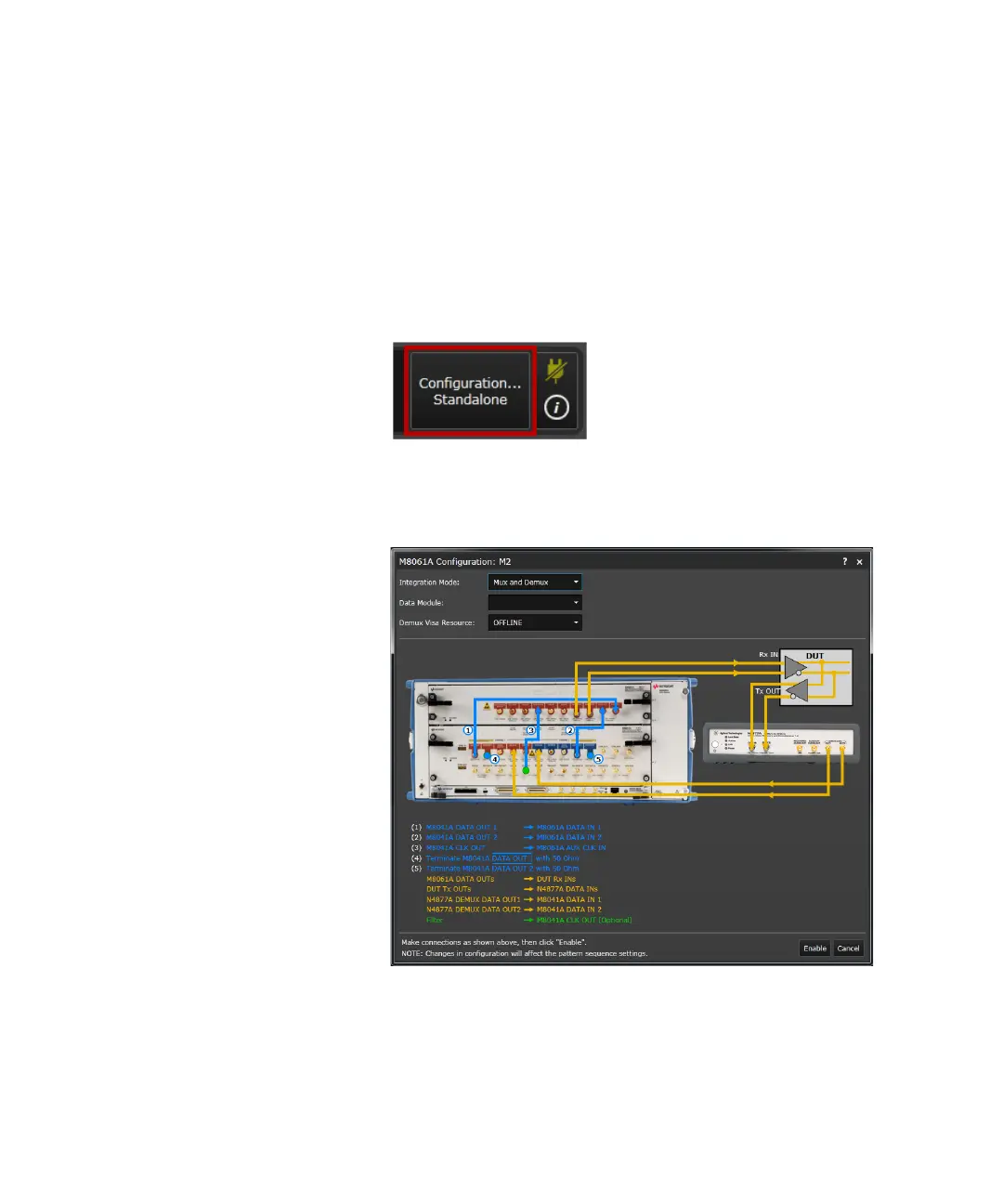

The M8061A Configuration dialog will appear as shown in the
following figure:
This dialog provides the following setting options:
• Integration Mode: Allows you to select the integration mode. The
default mode is Standalone Mode. The other modes you can select
are Mux Only mode, Demux Only mode and Mux and Demux mode.
