196 Keysight M8000 Series of BER Test Solutions User Guide
4 User Interface - M8020A Display Views
• Measurement Selection – Use this drop-down list to select the
measurement. The measurement will be provided depending upon the
selected analyzer channel.
• Status Indicator for Calculated BER/SER – Indicates the status of the
calculated BER/SER.

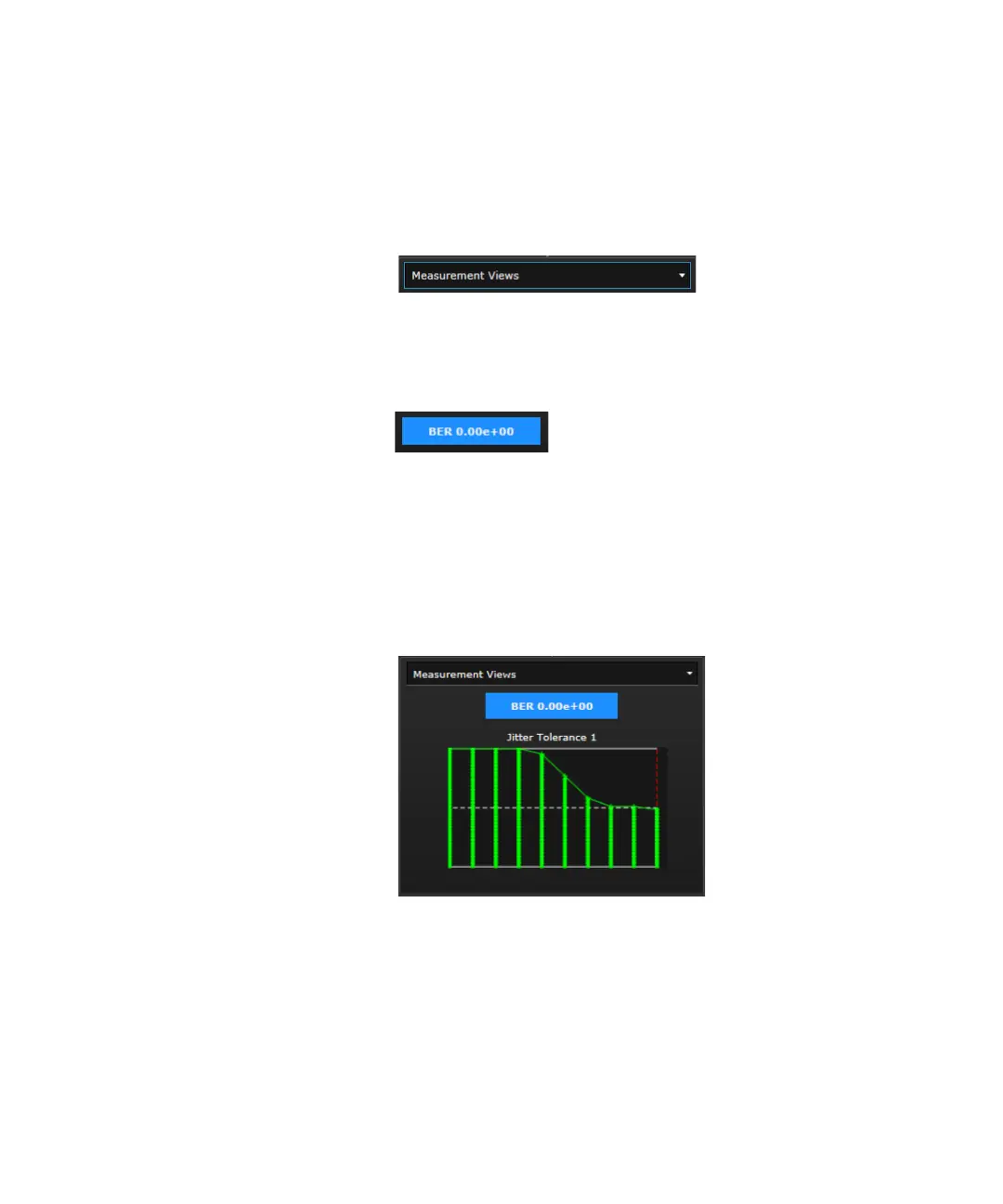

• Measurement Preview - Display the measurement preview of the
currently run measurement. If you have already run the measurement
once, it will show the status of last run measurement. You can
double-click on the measurement preview to open the measurement
window, provided the instance of that measurement is not closed. The
following figure shows an example of measurement preview when the
Jitter Tolerance measurement is executed.
