218 Keysight M8000 Series of BER Test Solutions User Guide
4 User Interface - M8020A Display Views
the M8070A sequence editor. You can change pattern type as static, clock,
PRBS, memory pattern, in single block with infinite loop. For more details,
refer to Sequence Editor on page 359.

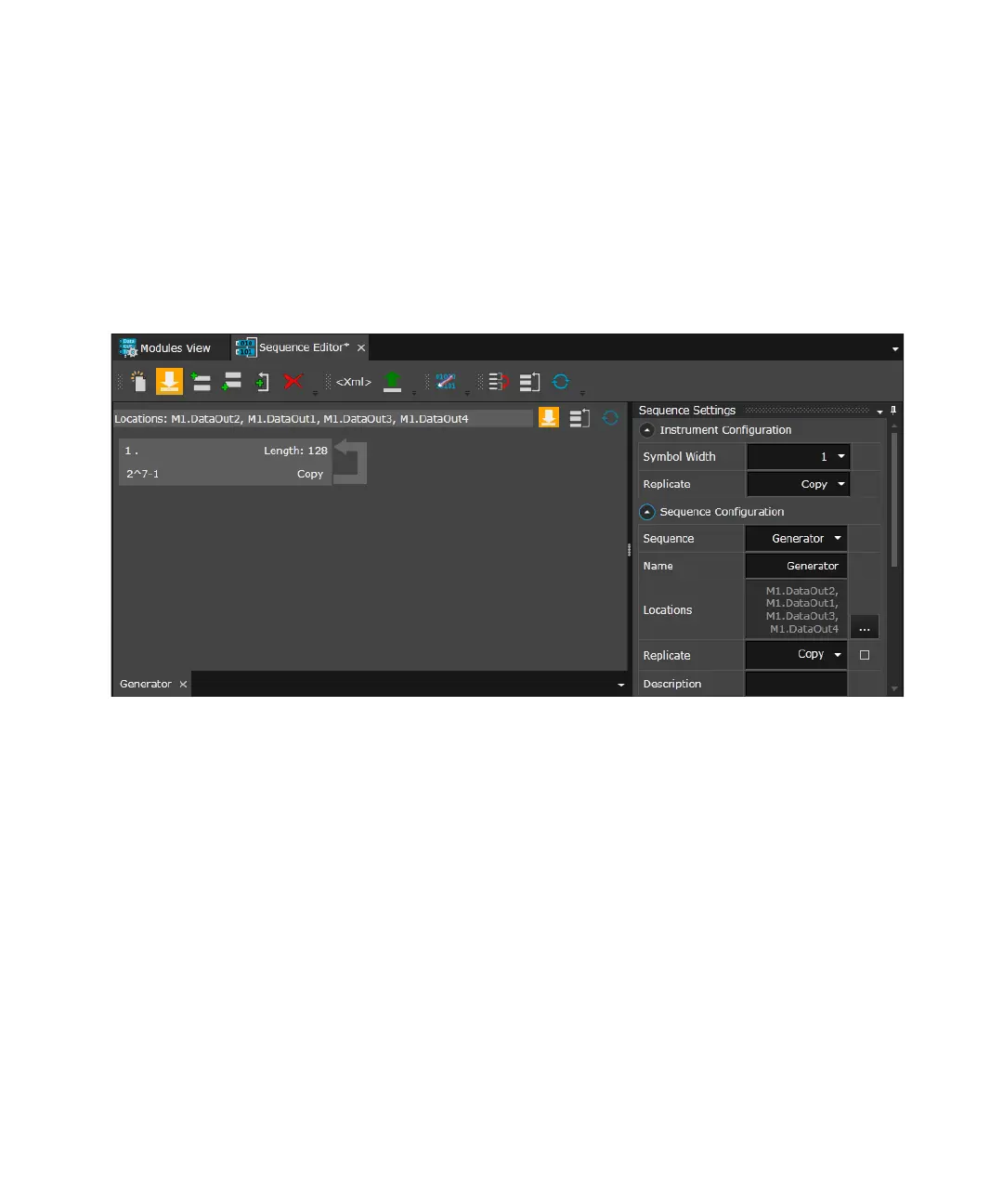

The M819xA modules can be also be configured from the M8070A
Sequence Editor. The following figure shows the AWG(s) Sequence
Editor:
You can use the Sequence Settings window to reprogram the values of
AWG parameters.
Parameters which are not applicable for AWG modules will be either
hidden, disabled or checked when performing a sequence download.
The Sequence Editor when used with an AWG module, has the following
capabilities:
• A single block can be looped infinitely
• Supports the following block types:
• PRBS (all polynomials that fit into AWG memory)
• Memory
• Static 0 or 1
• Single pulse per block
• Clock
