268 Keysight M8000 Series of BER Test Solutions User Guide
5 Setting up Generator
De-emphasis on 2 pre-cursor and 5 post-cursors

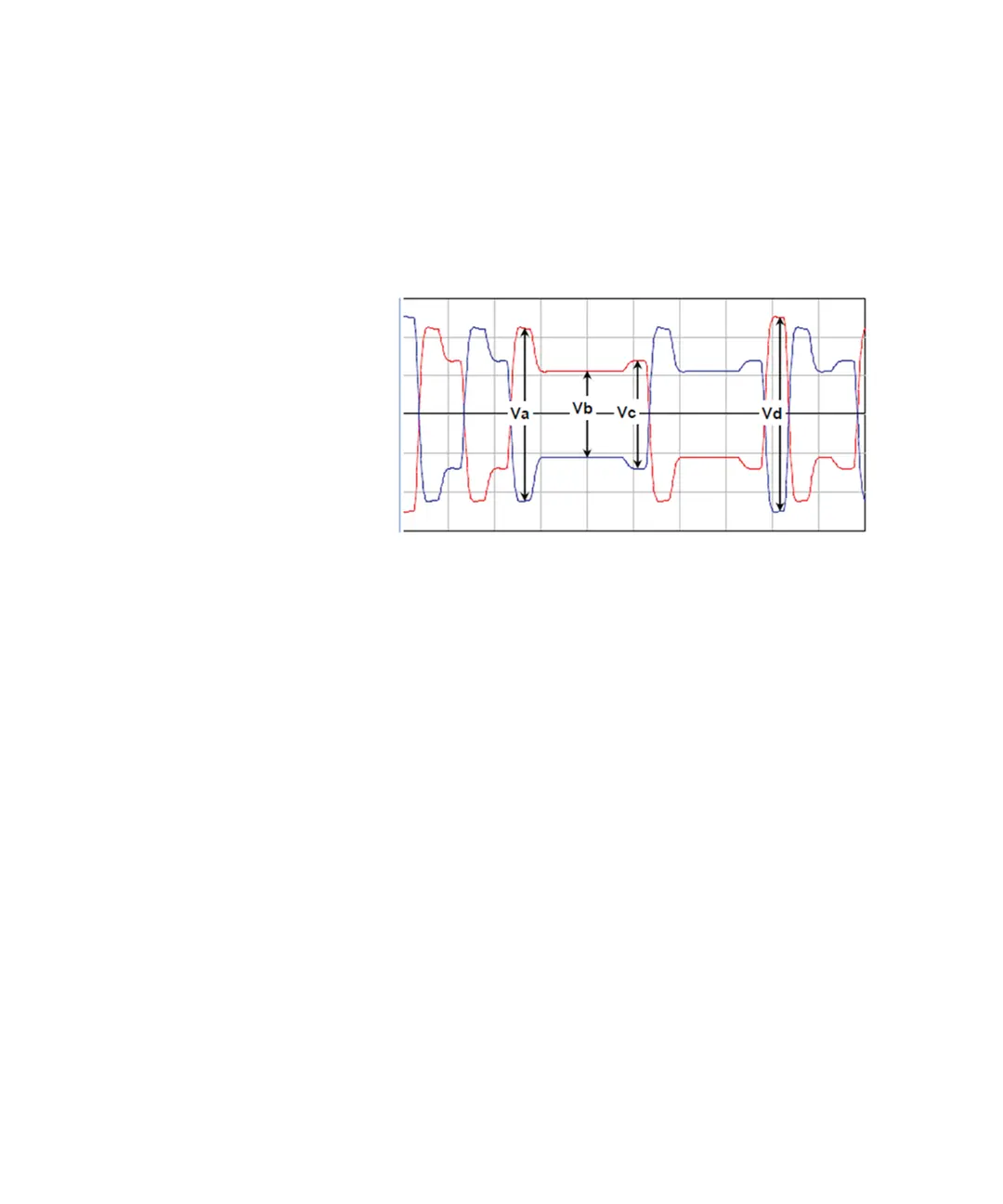

The following example illustrates the output of the differential signal with
variable de-emphasis on 2 pre-cursor and 5 post-cursors generated by
M8020A/M8030A De-Emphasis.
Controlling the De-Emphasis
To control the de-emphasis function:
1Go to the Menu Bar > Generator and then select Data Out.
2 Select De-Emphasis function block from the Parameters window.
For M8020A/M8030A, you have two (pre–cursor) and five (post–cursor)
and the corresponding unit.
