5 Setting up Generator

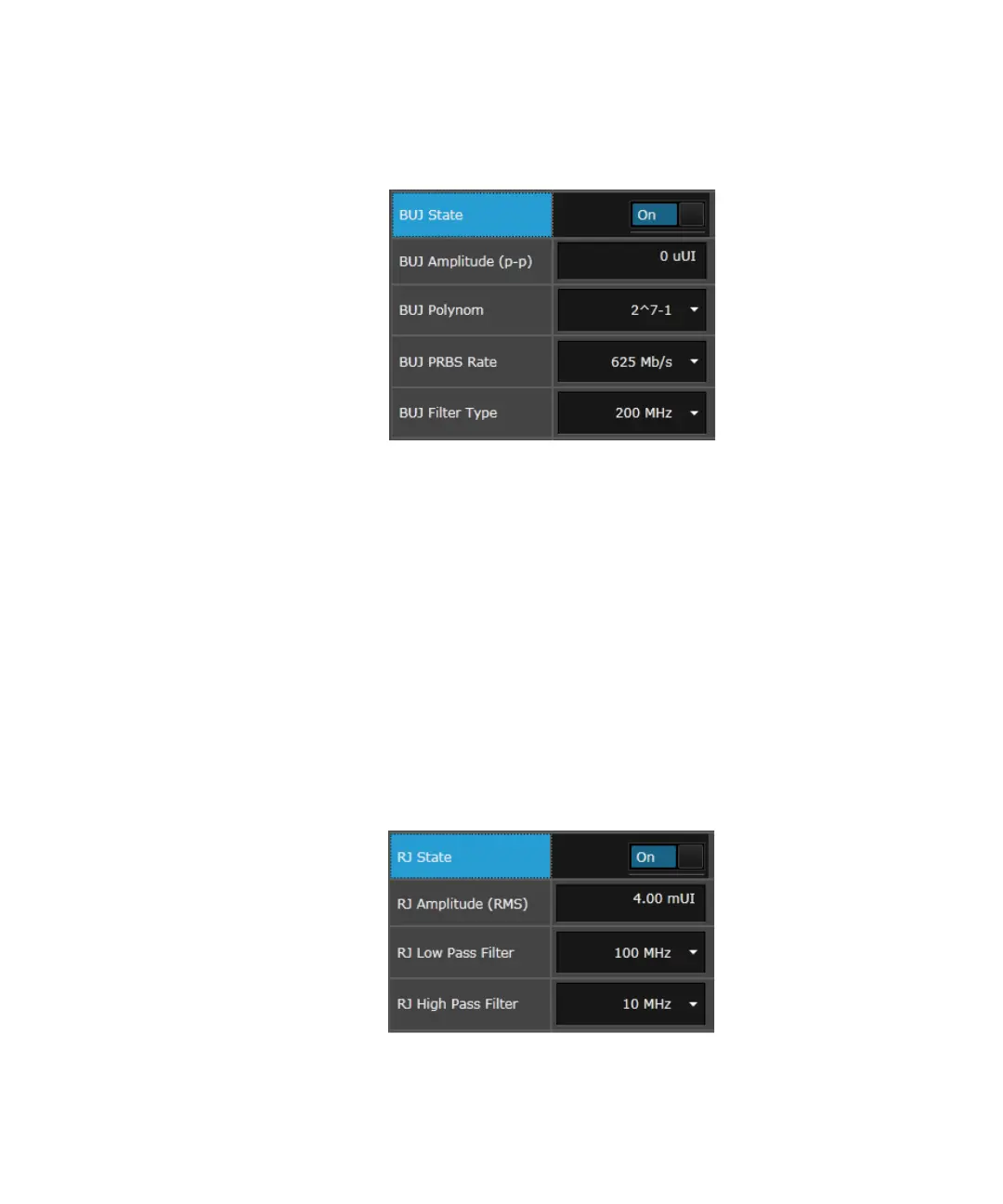

• Amplitude: Controls the amplitude of the BUJ jitter source.
• PRBS polynomial: The PRBS polynomial can be chosen from a list.
Available are eight polynomials, from 2^7-1 up to 2^31-1.
• Data Rate: Enter an appropriate Data Rate.
• Filter Type: The bounded uncorrelated jitter source is equipped with
three low-pass filters with cut-off frequencies at 50, 100, and 200 MHz.
One of these filters is always active.
Random Jitter
Random Jitter is characterized by:
•Amplitude
• Filter Settings
