7 Setting up Patterns

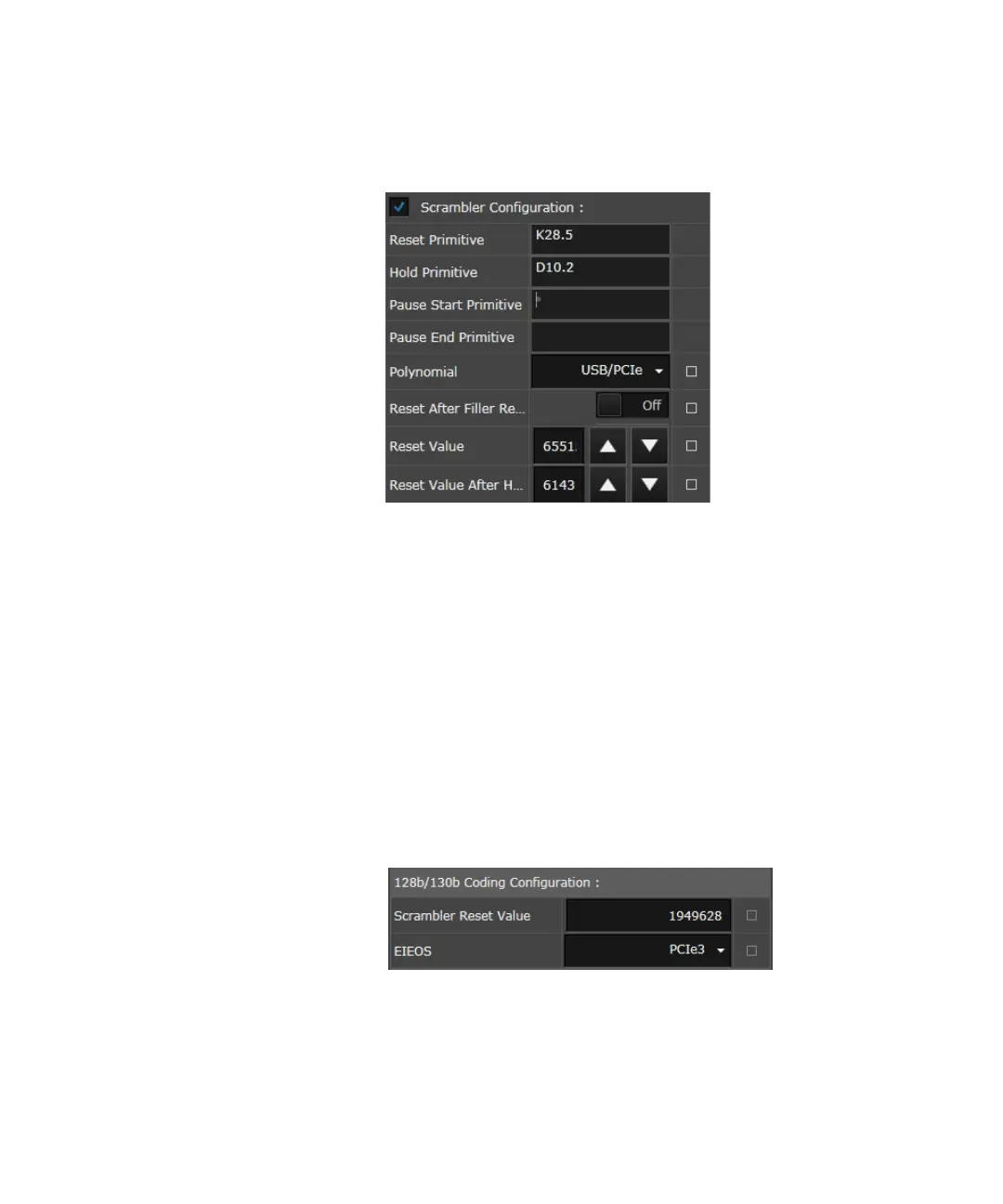

It allows you to:
• Reset Primitive
• Hold Primitive
• Pause Start Primitive
• Pause End Primitive
• Polynomial
• Reset After Filler Remove
•Reset Value
• Reset Value After Hold
If the symbol width is 130, you can specify the 128B/130B coding
configuration. Using this, you can define scrambler reset value and EIEOS
(Electrical Idle Exit Ordered Set) for PCIe3 or PCIe4.
