416 Keysight M8000 Series of BER Test Solutions User Guide
7 Setting up Patterns
The bottom of the Pattern Editor Pane indicates the position of the
selected symbols and buttons to edit them. These buttons are only
available when you create a pattern in bit coding and the data view mode
is binary (BIN). You can use these buttons to:
0 - Set data 0
1 - Set data 1.
X - Click this toggle button to add/remove mask on a data.
S - Click this toggle button to add/remove squelch on a data.
You can use the buttons as well as the keyboard keys to
move the pointer position to the left, right, up and down in the pattern.
In binary mode, when you click on any symbol, its position is displayed as
following:
•The top of the Pattern Editor Pane displays the index of cursor (symbol)
in current row.
• The bottom of the Pattern Editor Pane displays the symbol number.

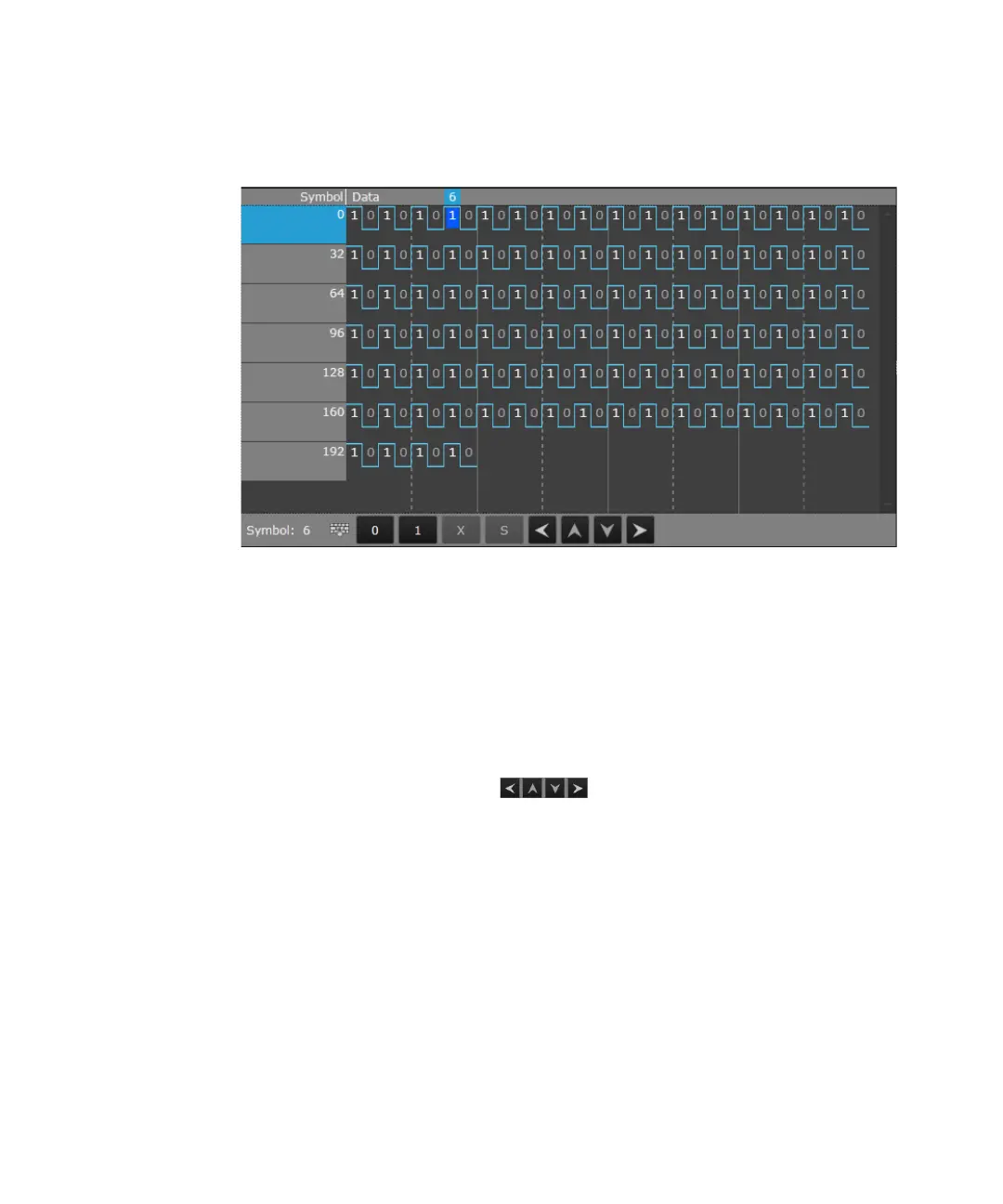

The following figure shows the Pattern Editor Pane with a symbol coded
(8B/10B) coded pattern:
