Keysight M8000 Series of BER Test Solutions User Guide 453
Setting up Patterns 7
Link Training Log
The Link Training Log window displays the log generated while initiating
the link training test for USB 3.0 and USB 3.1. All information regarding
the executed tests and their status are displayed with the date and time
stamp. This helps to identify the root cause of a problem. For instance, the
Link Training Log shows test failure due to an unexpected LTSSM state
change.

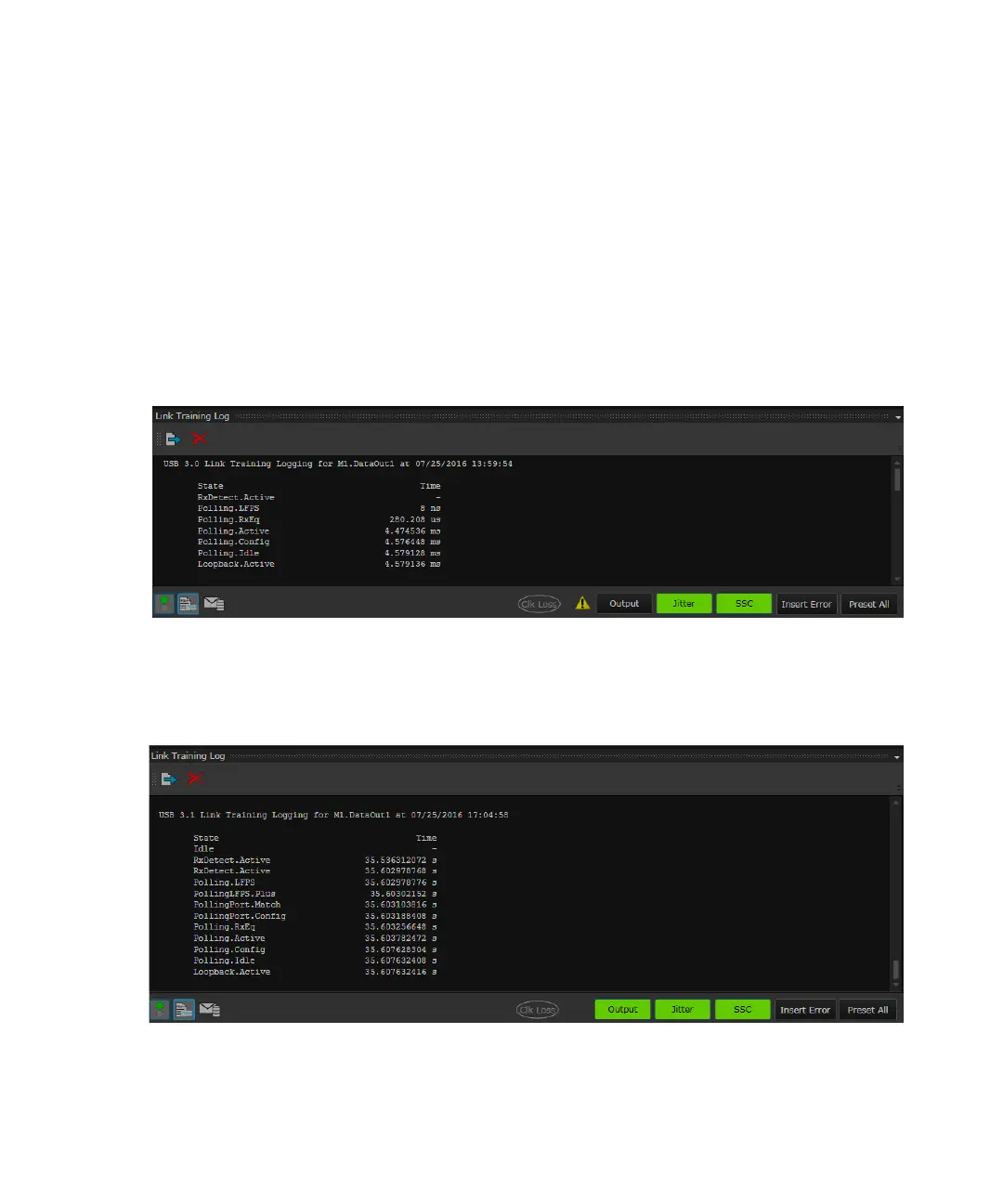

The following figure shows the log generated while initiating the link
training test for USB 3.0:
The following figure shows the log generated while initiating the link
training test for USB 3.1:
