7 Setting up Patterns

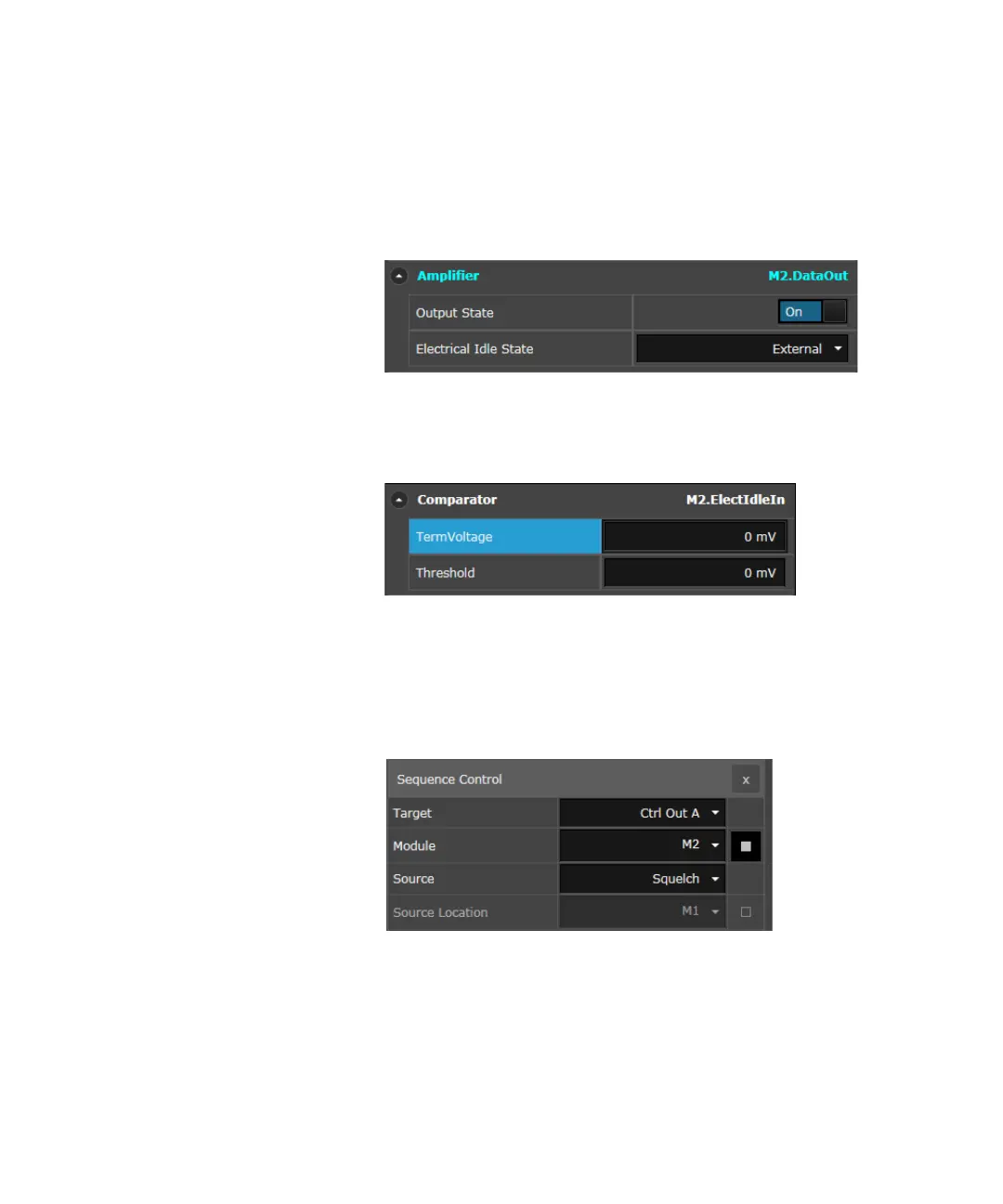

2 Change the electrical idle input (squelch input) setting of the M8062A
module (M2) to External. This is for external signal to have any effect
on the M8062As Data Out.
3 More settings for the Electrical Idle In can be changed by selecting the
respective module location configured with Elect Idle In.
4Open the Sequence Editor. The squelch can be activated by adding a
Sequence Control to the M8062A Data Out sequence.
Select the Target as Ctrl Out A, the Module as M2 (the only valid
selection with M8062A usage) and the Source as Squelch.
5 Alternatively for activating this feature in the GUI it is also possible to
specify this setting directly in the XML definition of the sequence. With
this it also is possible to activate this feature via SCPI:
