468 Keysight M8000 Series of BER Test Solutions User Guide
8 Working with Measurements

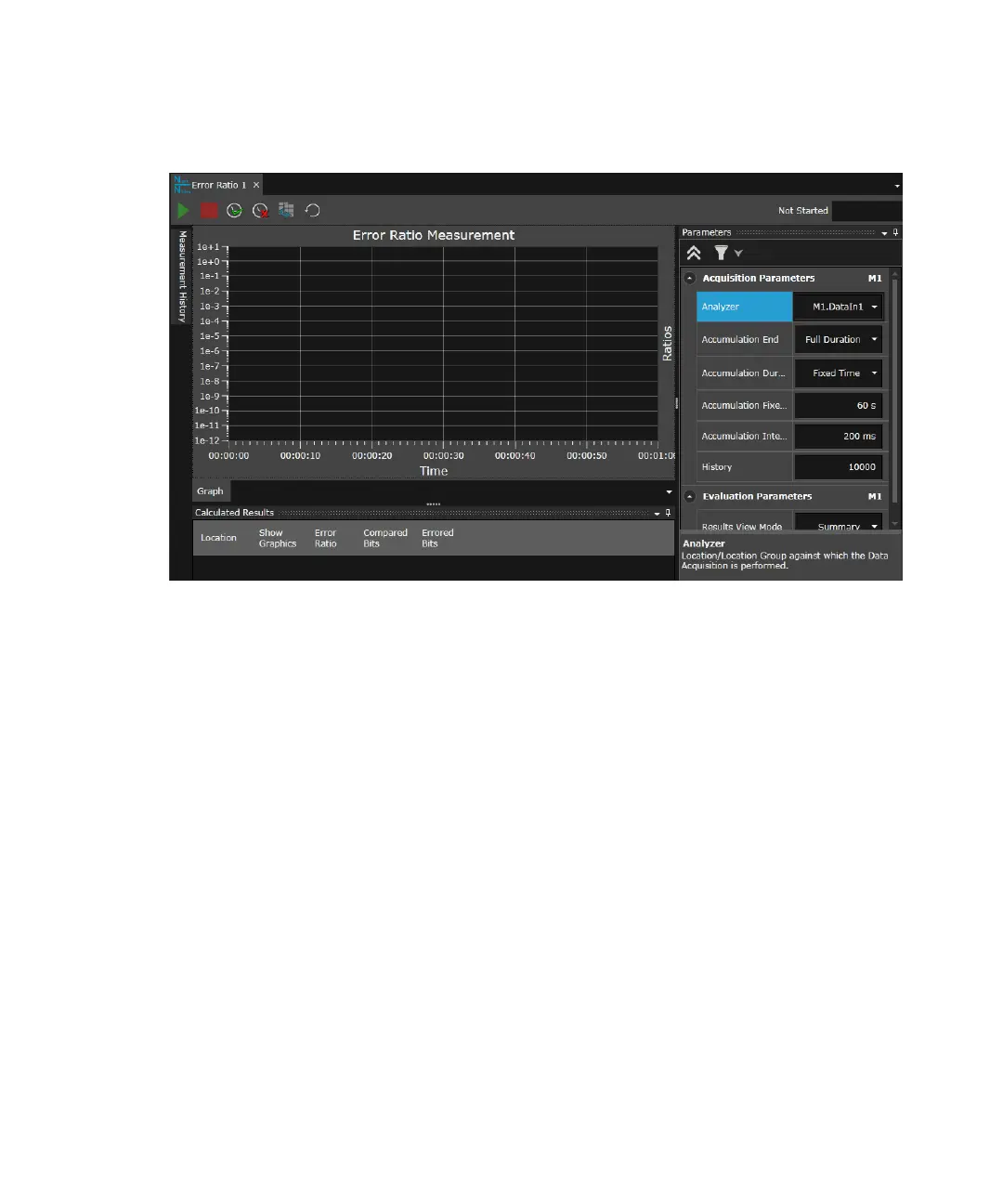

The Error Ratio user interface includes the following elements:
• Toolbar: For details, refer to Toolbar on page 462.
• History Pane: For details, refer to Measurement History Window on
page 463.
• Measurement Graph: For details, refer to Measurement Graph on
page 472.
• Parameter Pane: For details, refer to Acquisition and Evaluation
Parameters for Error Ratio on page 469.
• Calculated Results: For details, refer to Calculated Results on
page 474.
