Keysight M8000 Series of BER Test Solutions User Guide 49
Know Your Hardware 2

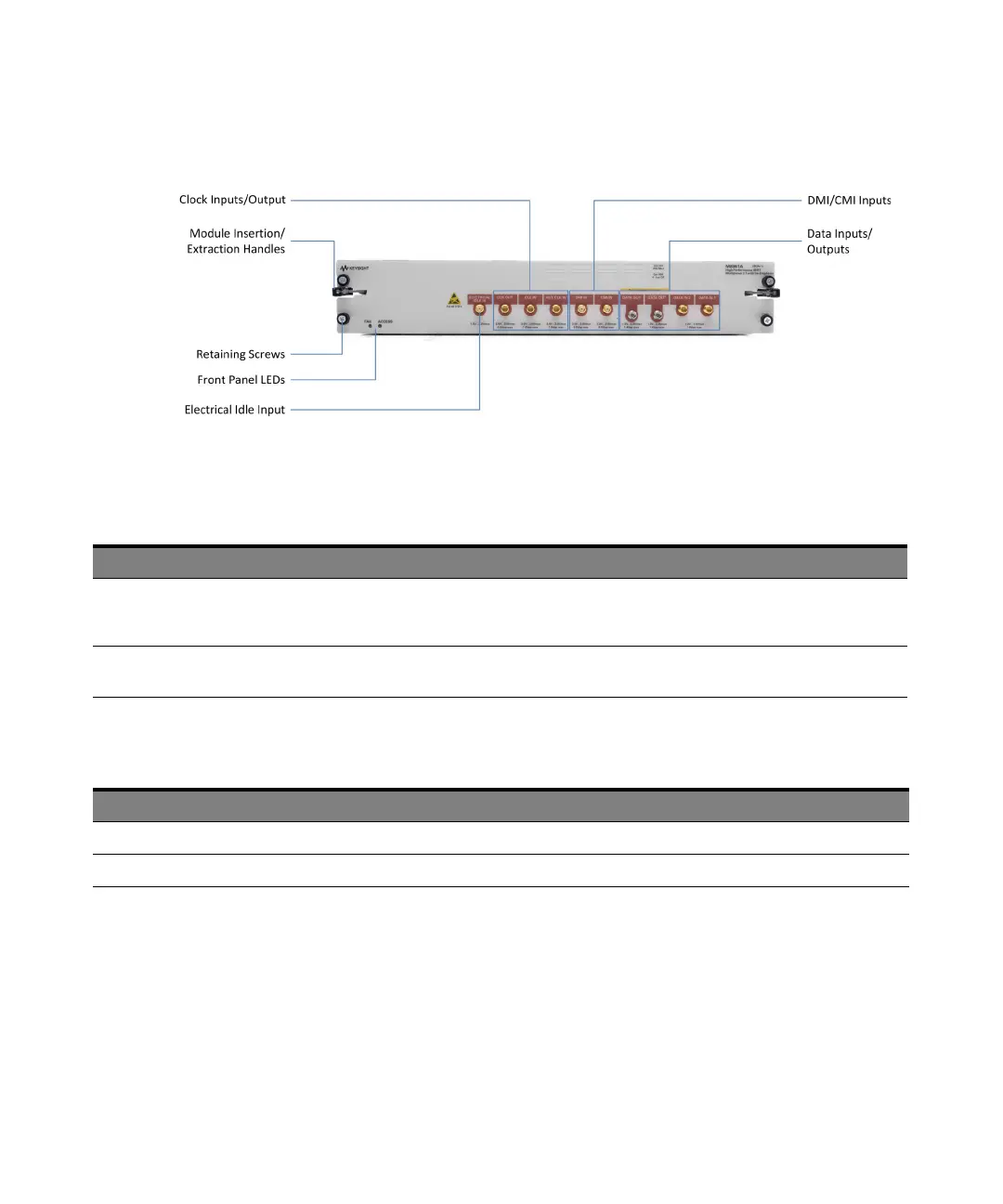

The M8061A module has the following components.
Table 19 Insertion/Extraction and Retaining
Table 20 Front Panel LEDs
Component Description
Retaining screws The screws on both ends of the module are used to retain the module tightly inside the M9505A AXIe
Chassis slot once you have fully placed it inside the chassis. To remove the module, you first need to
loosen these screws ensuring that these screws disengage completely.
Module Insertion/Extraction Handles The handles on both sides of the module to insert or eject the module from the slot of the M9505A AXIe
Chassis.
Connector Name Active when... Color
Fail power-up fault condition red
Access power-up ready state green
