68 Keysight M8000 Series of BER Test Solutions User Guide
2 Know Your Hardware

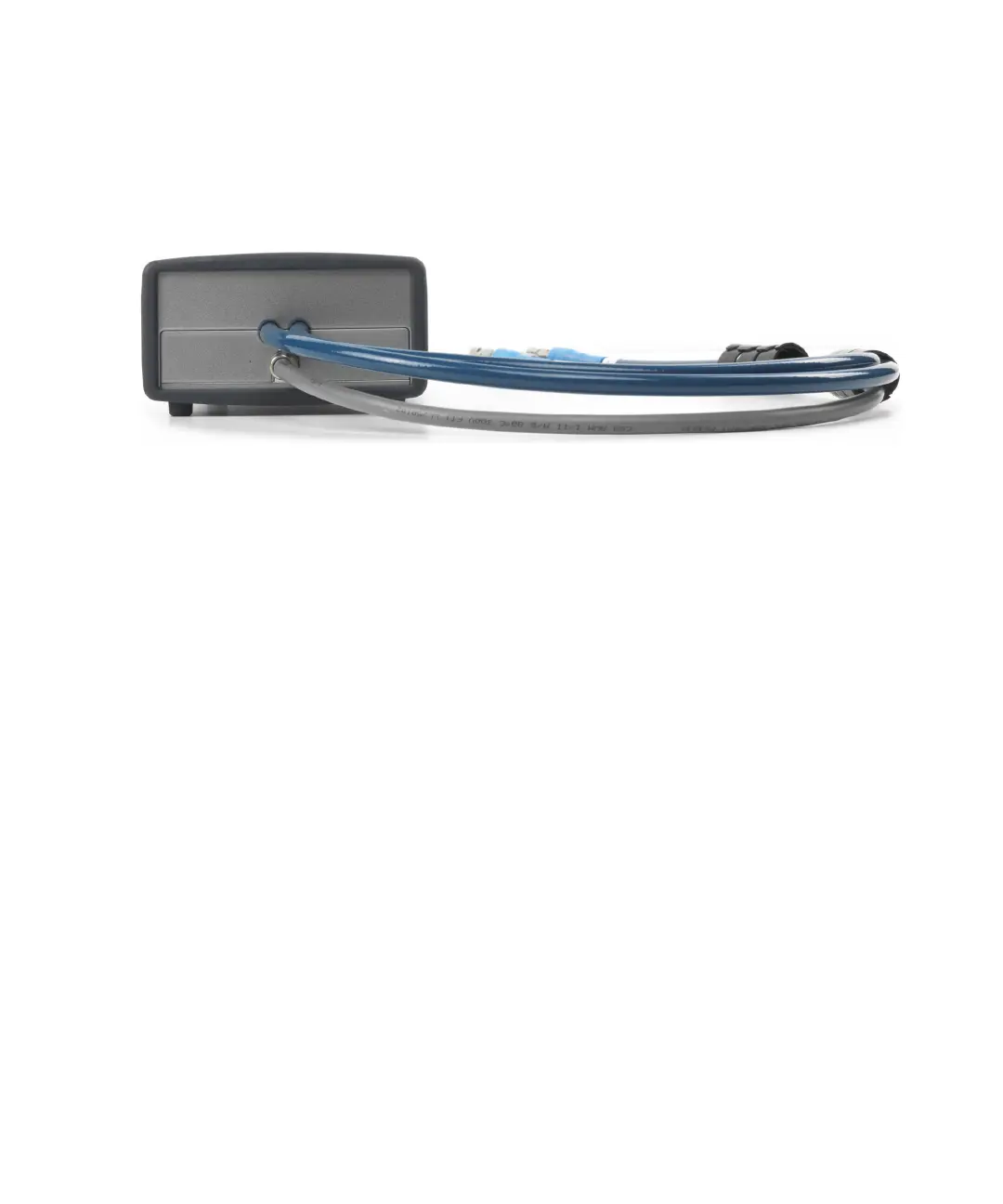

The following figure displays the back panel of the M8057A remote head
with its various components:
The back panel of M8057A remote head has cables which connects with
each channel of M8045A remote head controls (P and N). The length of
these cables are 85 cm.
Ensure that the chassis is NOT powered up or connected to a power
source while making connections to M8057A.
Also, make sure NOT to remove the M8057A connections when it is
powered on. However, if you wish to remove the M8057A connections,
ensure that the instrument is powered off.
