Two-edge Position Compensation
This position compensation item detects edges in two directions.
If the specified color is detected (or the specified density is detected for a Sensor with a Monochrome Camera),
it is recognized as an edge.
When an edge is recognized, the image is adjusted so that the edge appears at the position it was in when it
was registered.
[Image] − [Image adjustment]
1 Press an unused number and then press [Add pos. comp.].
2 Press [Edge] − [2Edge position comp.].
3 Make any detailed settings as required for the position compensation processing.
Refer to Detailed Settings for Two-edge Position Compensation, below.
4 Press [OK].
5 Press [Back].

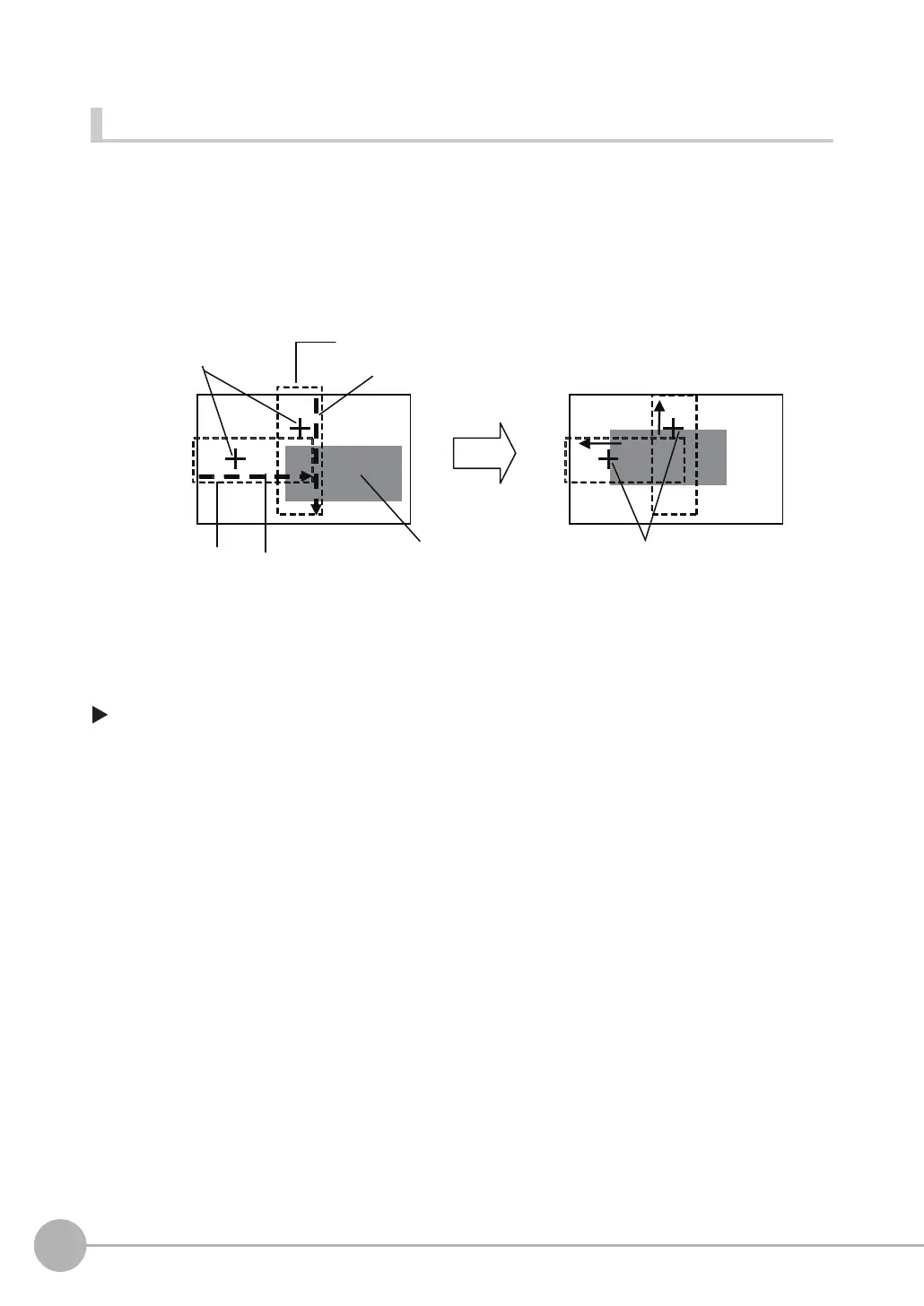

Measurement region for edge 1
Edge search direction for edge 1
Measurement
region for edge 0
Edge search
direction for edge 0
Color of edge to be found
Registered position
of the edge
The image is adjusted so that the edge
appears at the position it was in when it
was registered.
