Omron FQ2-S/CH Series

Reading with OCR
162
FQ2-S/CH User’s Manual
Code data Parameters
Set the Code data format to measure the encrypted date and time information.
For changing of Code data parameters, refer to the following two method.
• Code data edit tool
• Set using PC
When you use the period setting, the encrypted data is unacceptable for OCR.
Code data edit tool
Set the Code data using Code data edit tool
Download the Code data edit tool from the OMRON website.
For registration of OMRON website, confirm the SYSMAC ID ***** that comes with Sensor.
The following explanation of settings is for the example of an October date encrypted as X.
Describes the setting method.
1 Launch the Code data edit tool.

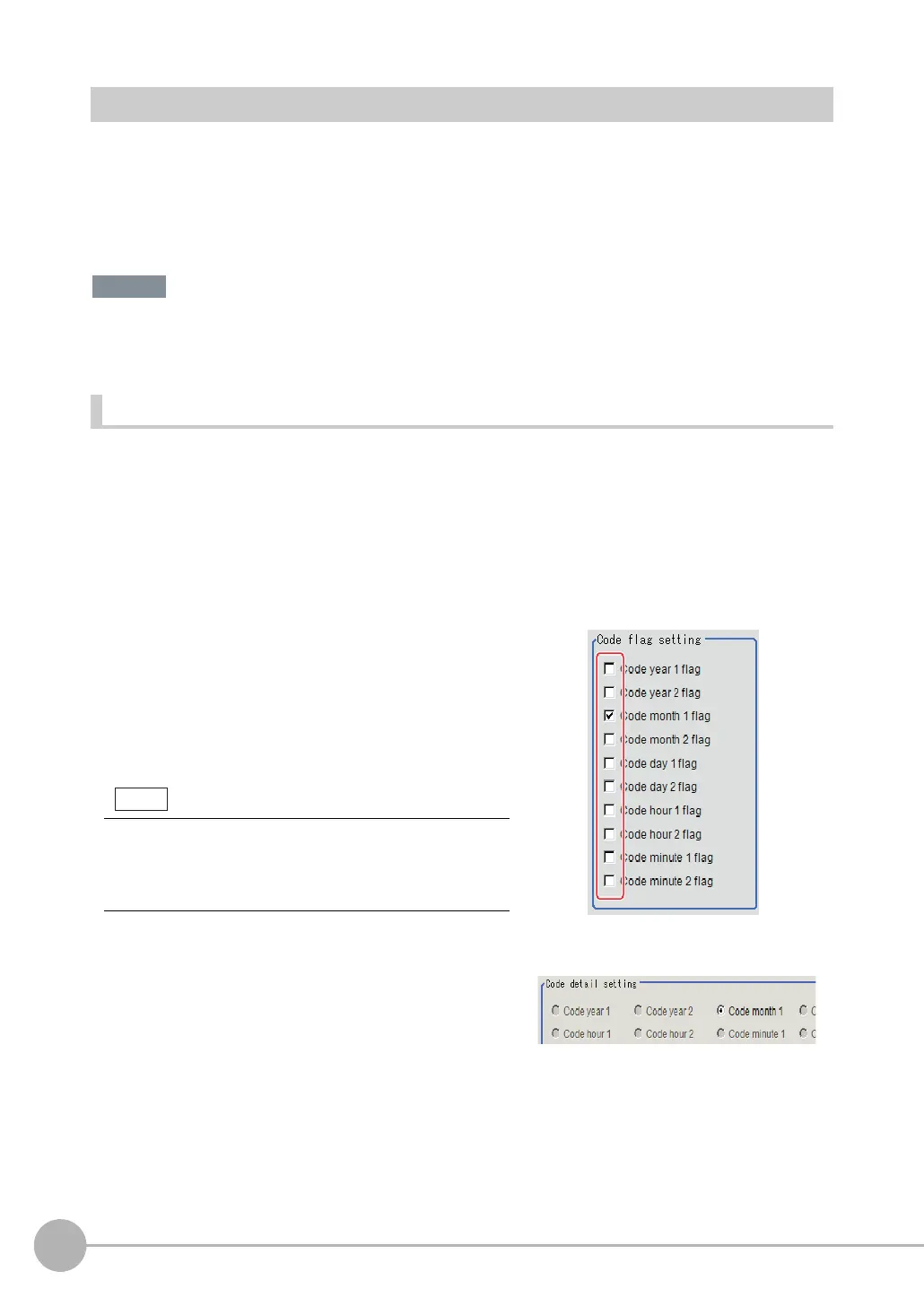

2 In the code detail setting area, select the “Code
month 1 flag” check box.
3 Place a check at "Code month 1" in the "Code de-
tail setting" area.
4 Enter “X” in the [10:].
For character string, enter with in four strings.
Important
Code month 1 and code month 2
• Set up code files for 2 patterns in order to be ready for set
changes. Select a check at the one to use.
Note
