Inspecting with the Area Inspection Item
302
FQ2-S/CH User’s Manual
Step 2 Teaching

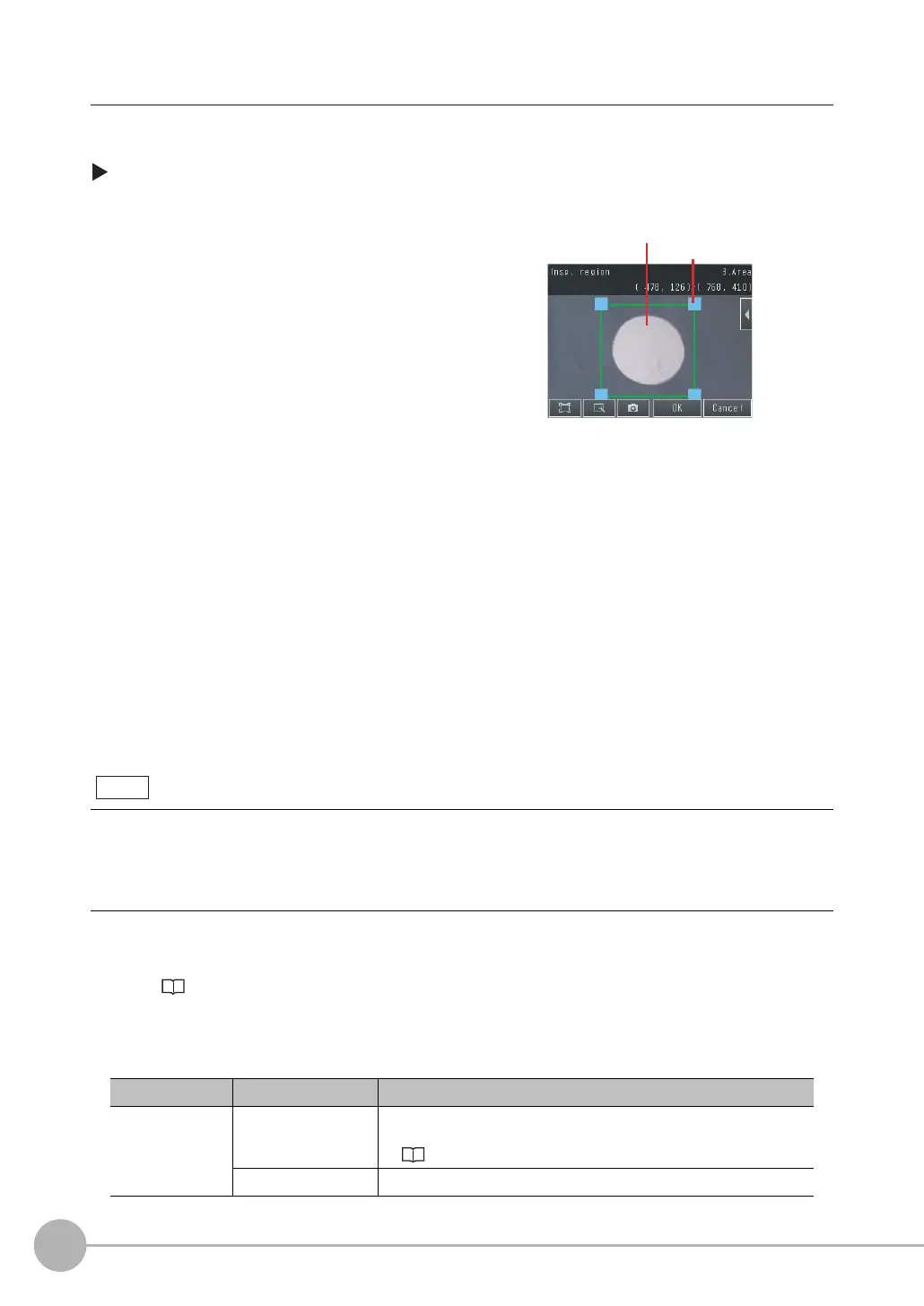

Teaching means to store the region and the color area in the region as reference data for the measurement.
[Inspect] − [Inspection] − [Add item.] − [Area] − [Settings] Tab Page
The following data is stored as the measurement reference.
1 Press [Teach].
2 Place the object that is to be used as the measure-
ment reference in front of the camera.
3 Move the rectangle to the location to be measured.
4 Press [OK].
5 Press [TEACH] on the lower right of the display.
The basic settings will be registered when teaching has been completed. Areas with the extracted color
will be automatically detected.
Information on the color that has the largest area in the measurement region is extracted and registered.
(The color information is extracted only the first time.)
The extracted color information will not change from the second time on.
To specify a desired color, refer to Extraction Is Automatically Performed for an Undesired Color When Teaching
p. 305.
6 Press [Back] to end teaching.
Changing the measurement region: p. 227
Item Parameter Description
Reference data
Extract color
This is the color for which to measure the area.
The color occupying the largest area will be automatically registered.
Setting Colors Manually: p. 305
Reference area The area to use as a reference is set automatically.
Drag a corner to
size the rectangle.
Drag the rectangle
to move it.
