Inspecting with the Labeling Inspection Item
312
FQ2-S/CH User’s Manual
Step 2 Teaching
Teaching means to register the region and label characteristics in that region as reference data for
measurements.
• Sensors with Color Cameras Only
[Inspect] − [Inspection] − [Add item.] − [Labeling] − [Settings] Tab Page
1 Press [Teach].
2 Place the object that is to be used as the measurement reference in front of the camera.
3 Move the rectangle to the location to be measured.
4 Press [OK].
5 Press [TEACH] on the lower right of the display.
The basic settings will be registered when teaching has been completed.
Information on the color that has the largest area in the measurement region is extracted and registered. (The color
information is extracted only the first time.)
The extracted color information will not change from the second time on.
To specify a desired color, refer to Extraction Is Automatically Performed for an Undesired Color When Teaching: p.
314.
6 Press [Back] to end teaching.
Changing the measurement region: p. 227
If you press the [TEACH] Button without specifying a color, the color with the largest area in the measurement region
will be extracted and the resulting color information will be registered.

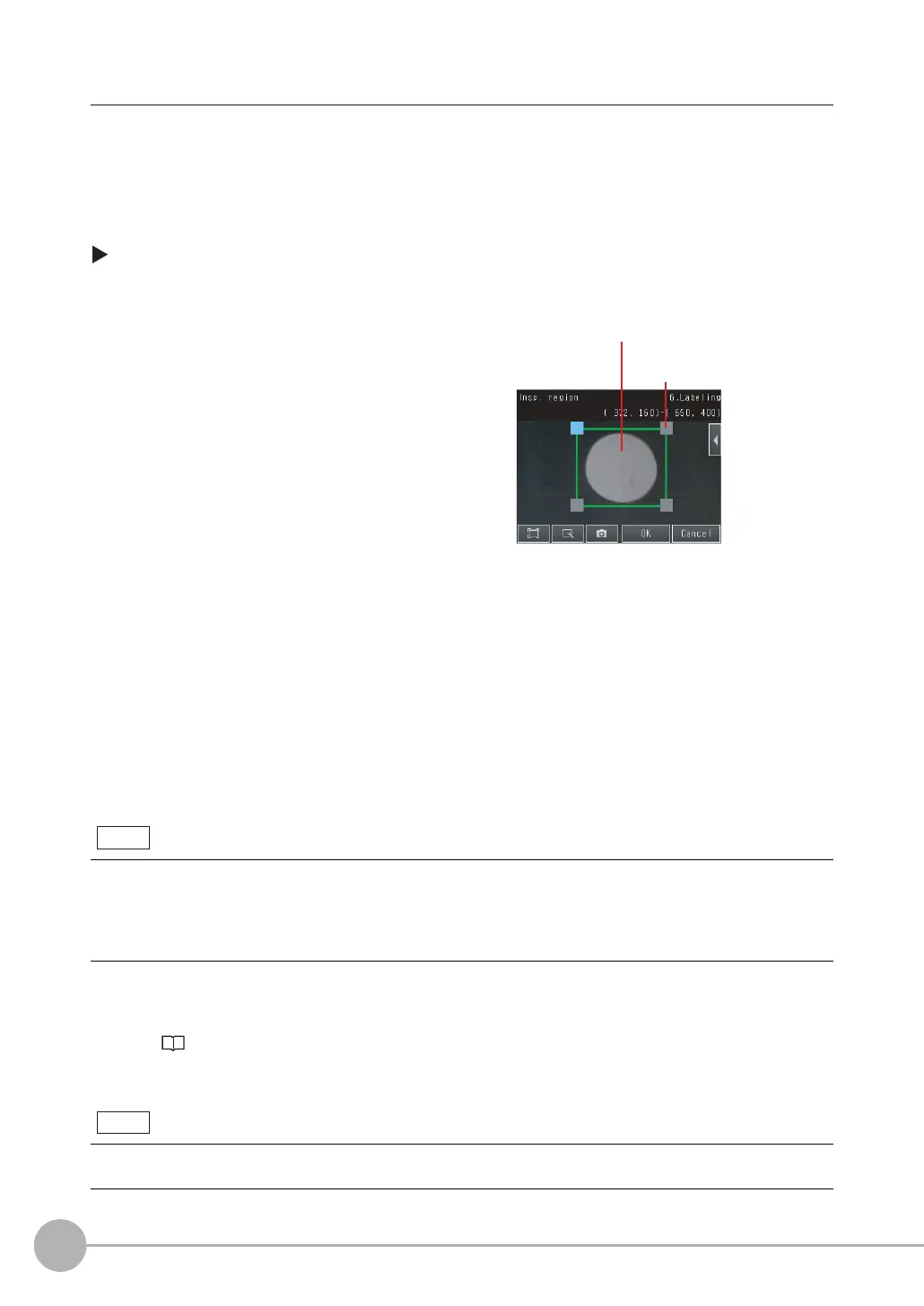

Drag the rectangle to move it.
Drag a corner to
size the rectangle.
Note
Note
To Next Page
