RL78/F13, F14 CHAPTER 15 SERIAL ARRAY UNIT

R01UH0368EJ0210 Rev.2.10 849

Dec 10, 2015

(3) Processing flow (in single-reception mode)

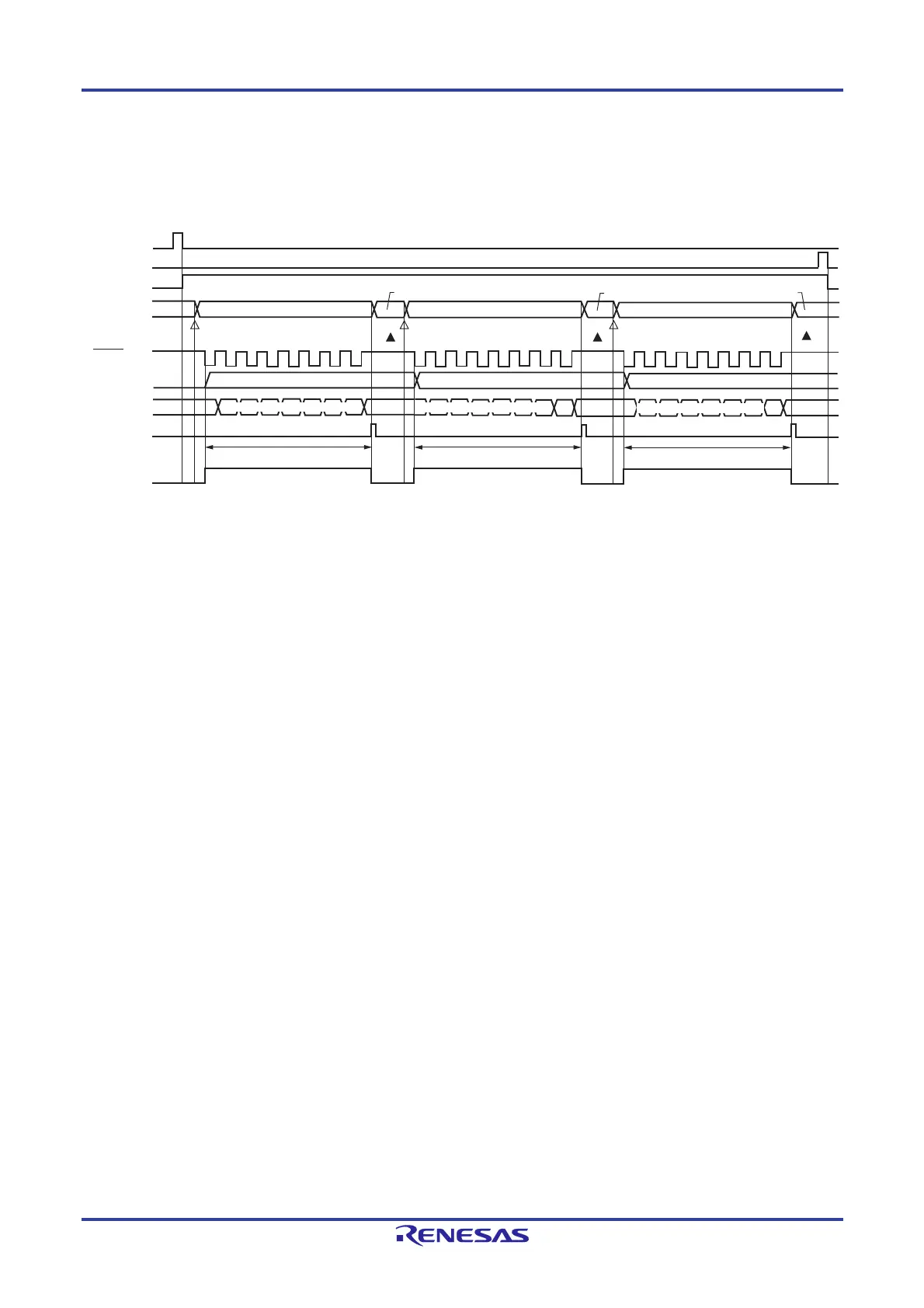

Figure 15-37. Timing Chart of Master Reception (in Single-Reception Mode)

(Type 1: DAPmn = 0, CKPmn = 0)

Remark m: Unit number (m = 0, 1), n: Channel number (n = 0, 1), p: CSI number (p = 00, 01, 10, 11),

mn = 00, 01, 10, 11

SSmn

SEmn

SDRmn

SCKp pin

SIp pin

Shift

INTCSIp

TSFmn

Data reception (8-bit length)

Reception & shift operation

STmn

Receive data 3

Receive data 2

Receive data 1

Dummy data for reception

Dummy data

Receive data 1

Receive data 2

Receive data 3

Write

Read

Write

Read

Write
