RL78/F13, F14 CHAPTER 15 SERIAL ARRAY UNIT

R01UH0368EJ0210 Rev.2.10 871

Dec 10, 2015

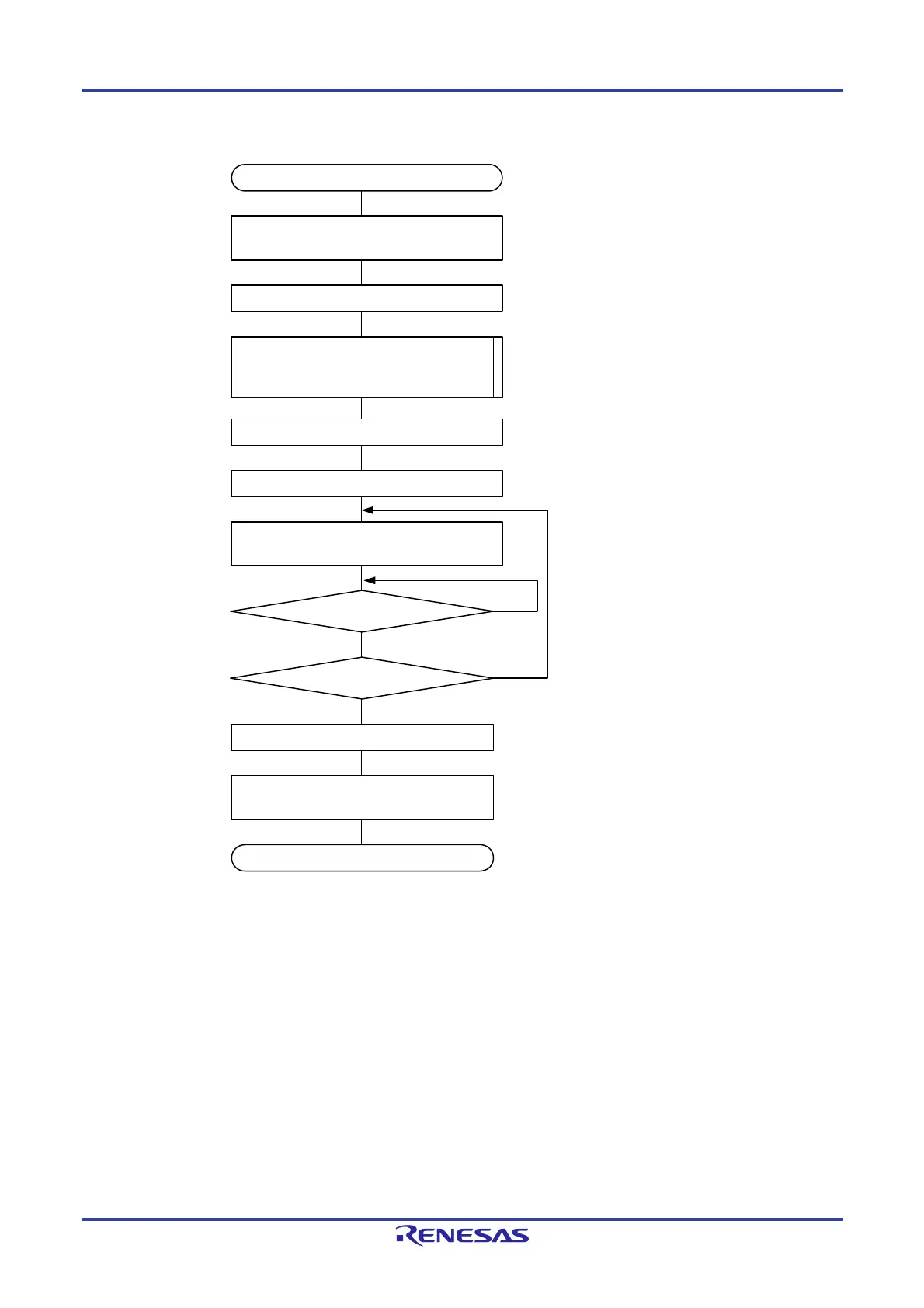

Figure 15-54. Flowchart of Slave Transmission (in Single-Transmission Mode)

Remark m: Unit number (m = 0, 1), n: Channel number (n = 0, 1), p: CSI number (p = 00, 01, 10, 11),

mn = 00, 01, 10, 11

Starting CSI communication

Port manipulation

Setting the SAU1EN and SAU0EN bits of the

PER0 register to 1

Setting transfer rate with the SPSm register

Writing 1 to the SSmn bit

Writing transmit data to the SDRmn register

Transfer end interrupt

generated?

Setting the SAU1EN and SAU0EN bits of the

PER0 register to 0

End of transmission

Transmission

completed?

Writing 1 to the STmn bit

Specify the initial settings while

the SEmn bit is 0.

SMRmn, SCRmn: Setting communication

SDRmn[15:9]: Setting 0000000B

SOm, SOEm: Setting output

Yes
