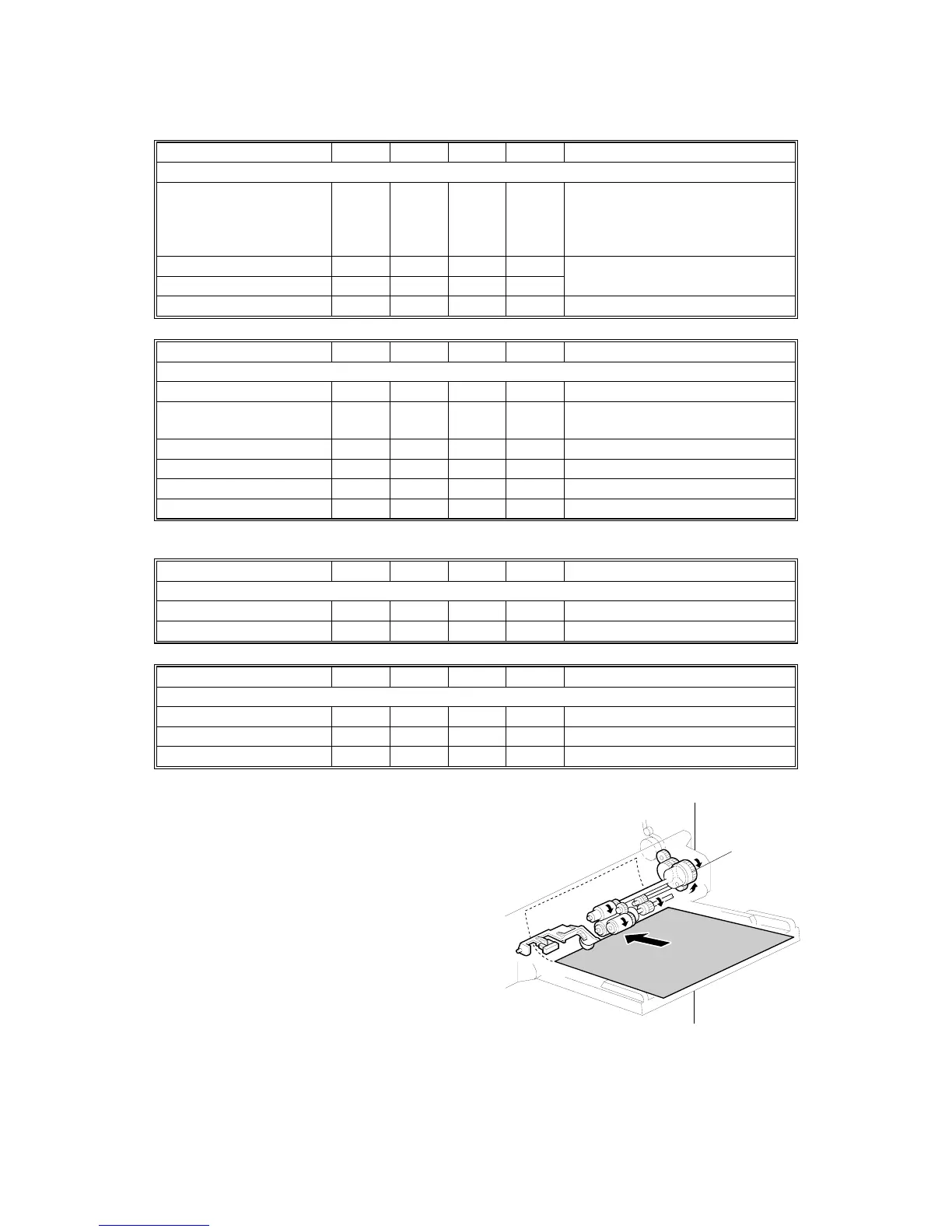

PM TABLE
B079/B082 2-4 SM
B543 EM 150K 300K 450K NOTE
LCT
Paper Feed Roller
R R R
Check counter with SP7-204. If
≥ 150 K, replace roller. After
replacing the roller, do SP7-816
to reset counter.
Pick-up Roller R R R
Separation Roller R R R
Bottom Plate Pad C C C Dry or damp cloth
B408/B545 EM 150K 300K 450K NOTE
1000-SHEET/TWO-TRAY FINISHER
Rollers C Water or alcohol.
Brush Roller
(A681 only)
I I I I
Replace if required.
Discharge Brush C C C C Dry cloth
Sensors C Blower brush
Jogger Fences I I I I Replace if required.
Punch Waste Hopper* I I I I Empty hopper.
* Only for B545
B546 EM 150K 300K 450K NOTE
BOOKLET FINISHER
Transport Belt C C C
Stapler Paddles C C C
B544 EM 150K 300K 450K NOTE
1-BIN TRAY UNIT
Rollers C Dry or damp cloth
Copy Tray C Dry or damp cloth
Sensors C Blower brush
*1
Lubricate the paper feed clutch gear [A]
with Silicone Grease G501 every P.M.
B079P900.WMF
[A]
