Ricoh B079 - By-Pass Tray

Replacement
Adjustment
BY-PASS TRAY
SM 3-5 B079/B082
3.6 BY-PASS TRAY
1. Duplex unit (! 3.4)
2. Left cover [A] ( x1)
3. Right cover [B] ( x1)
4. Connectors [C] ( x2)
5. By-pass unit [D] ( x4)
NOTE: After removing the screws, lift to unhook the by-pass tray unit from the
frame of the machine.

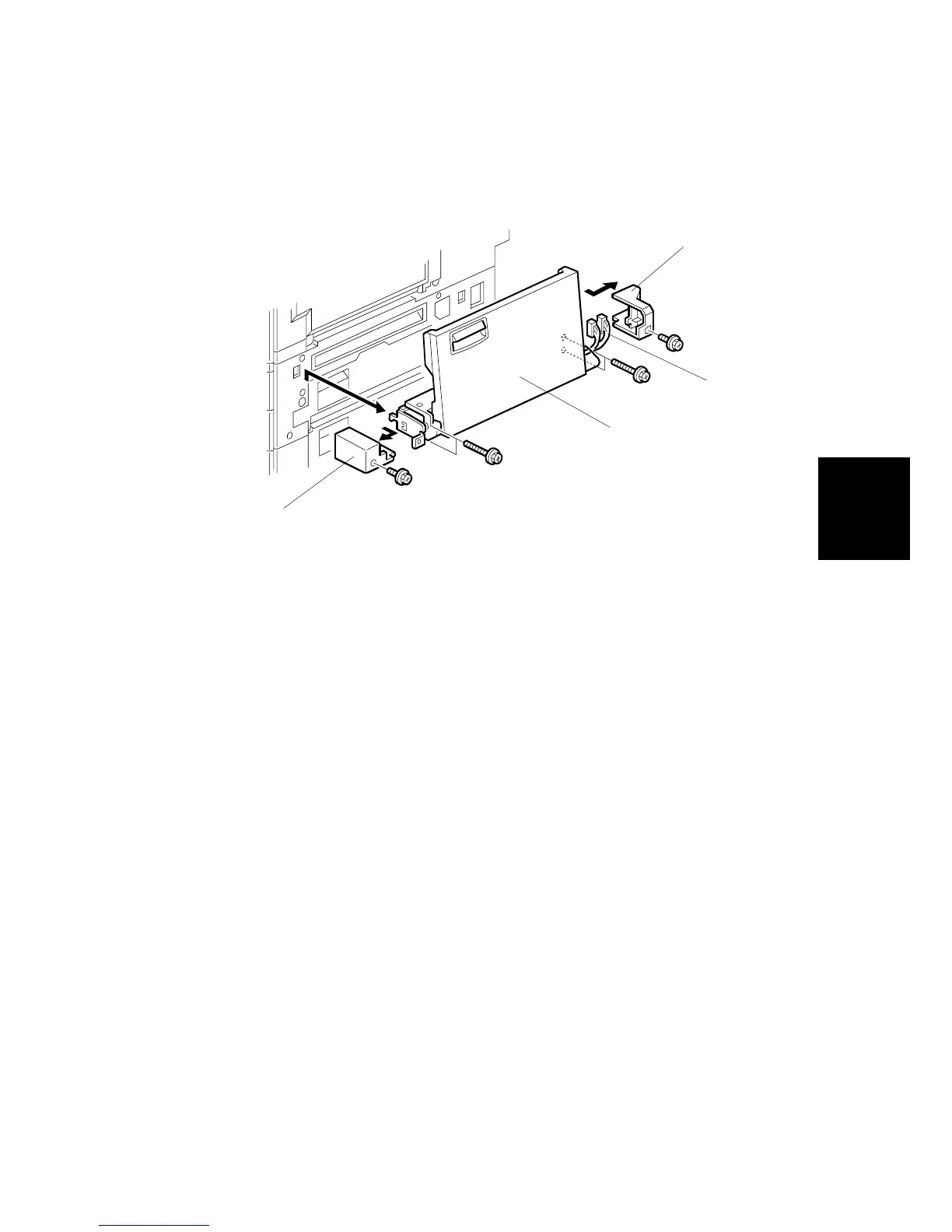

B004R952.WMF
[A]
[B]
[C]
[D]
