FUSING UNIT
B079/B082 3-56 SM
3.15.5 THERMISTORS AND THERMOSTATS
1. Fusing unit (! 3.15.1)
2. Fusing upper and lower cover. (! 3.15.3, 3.15.4)

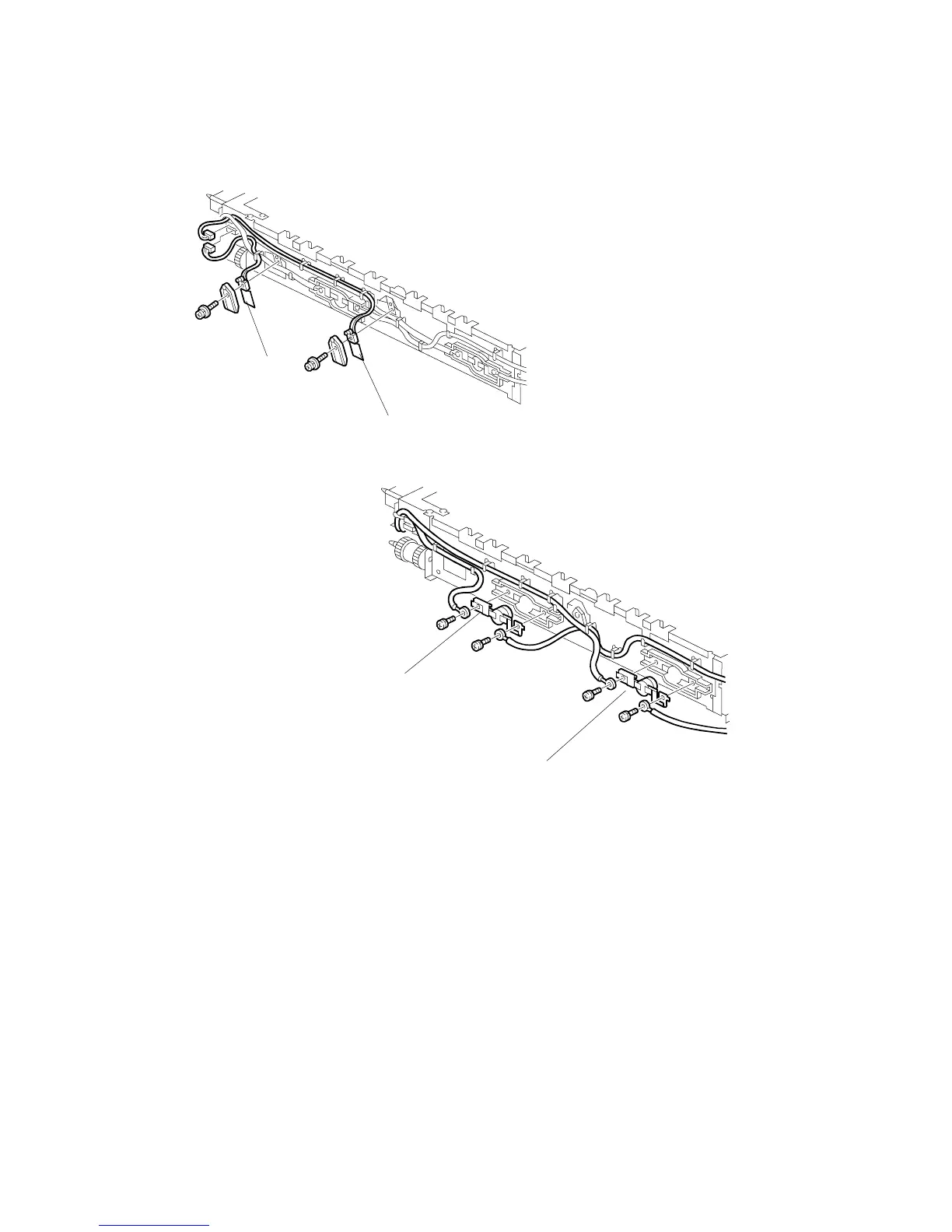

3. Center thermistor [A] ( x1,  x1, holder x1)
4. End thermistor [B] ( x1,  x1, holder x1)
CAUTION: The thermistors are thinly coated and extremely fragile. Handle with
care to avoid damaging them. They should be replaced every 150K.
5. Center thermostat [C] ( x2)
6. End thermostat [D] ( x2)
