TRAY UNIT SLIDE MECHANISM
B543 8 SM
2.3 TRAY UNIT SLIDE MECHANISM
When there is a paper jam between the copier and the LCT, the user releases the
lock lever [A] and can slide the LCT away from the copier to remove the jammed
paper.
When sliding the LCT back into position, the LCT is secured against the copier in
the correct position by the docking pins [B] on the LCT.

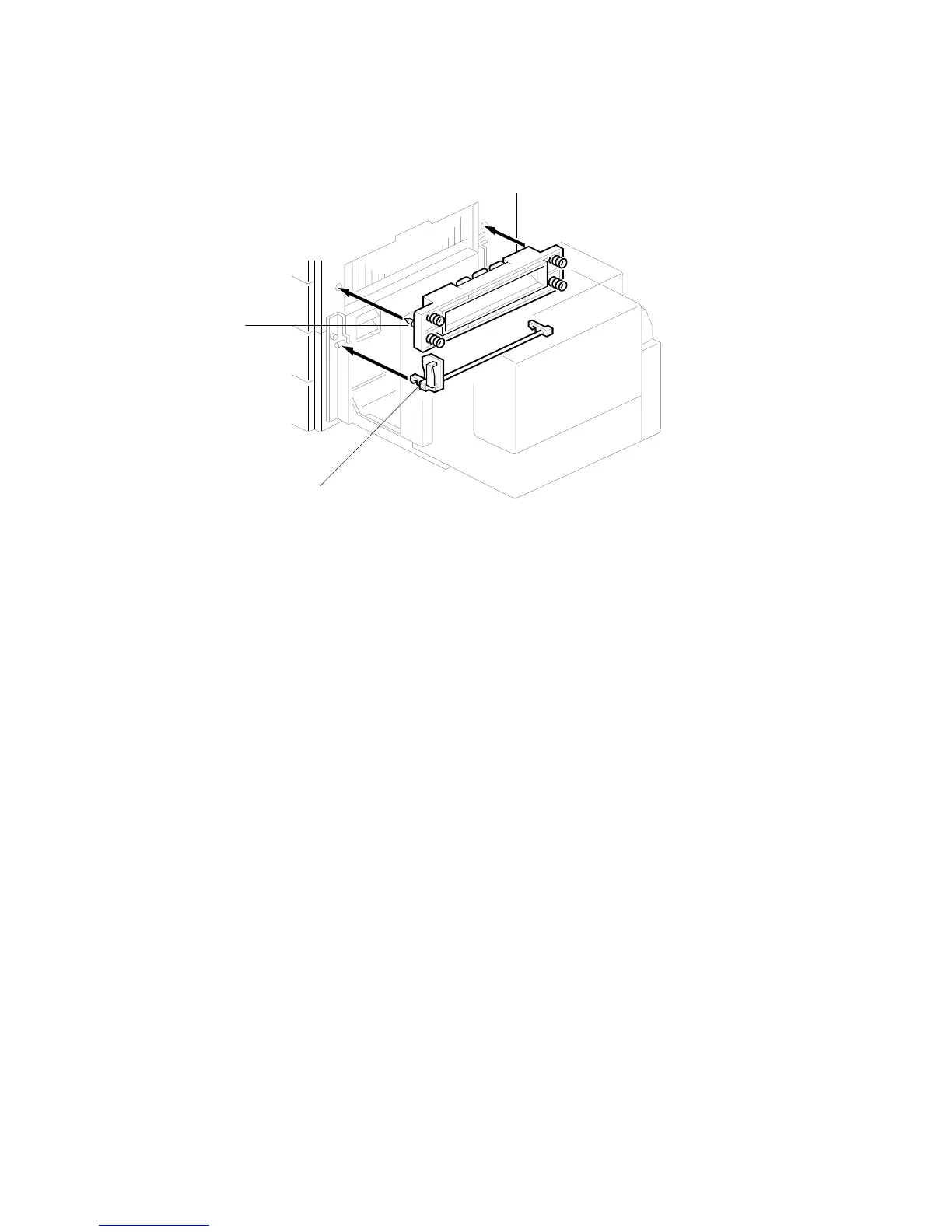

A683D502.WMF
[B]
[A]
