Ricoh B079 - Fusing Lamps

FUSING UNIT
B079/B082 3-54 SM

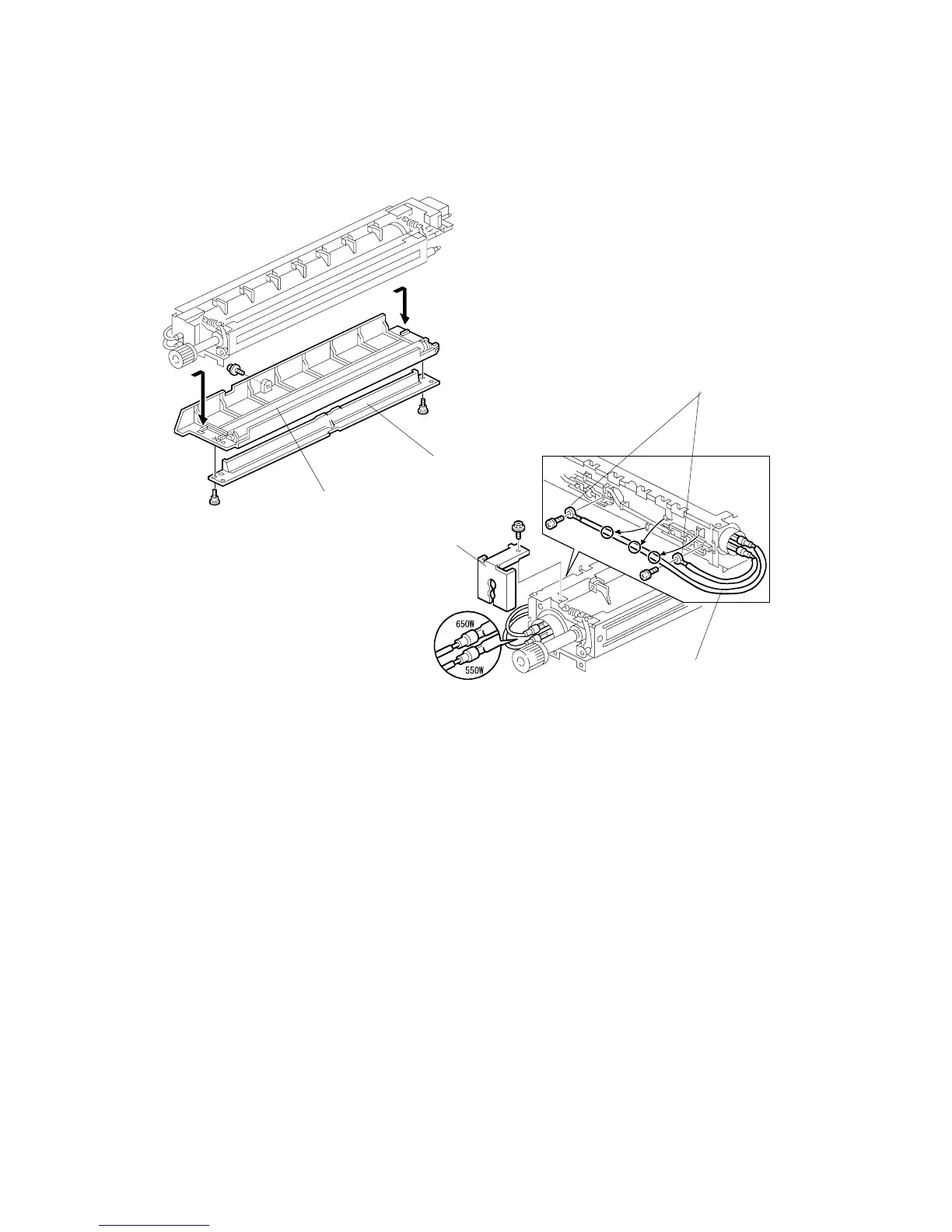

3.15.4 FUSING LAMPS
1. Fusing unit (! 3.15.1)
2. Fusing unit cover (! 3.15.3)
3. Fusing entrance guide [A] ( x2)
4. Lower cover [B] ( x1)
Left side
5. Two terminals [C] ( x2)
6. Center fusing lamp lead [D] (3 clamps)
7. Bracket [E] ( x1)
B004R603.WMF
B004R606.WMF
[A]
[B]
[D]
[E]
[C]
