1.5 SKEW CORRECTION/INTERVAL/
REGISTRATION/ORIGINAL WIDTH SENSORS

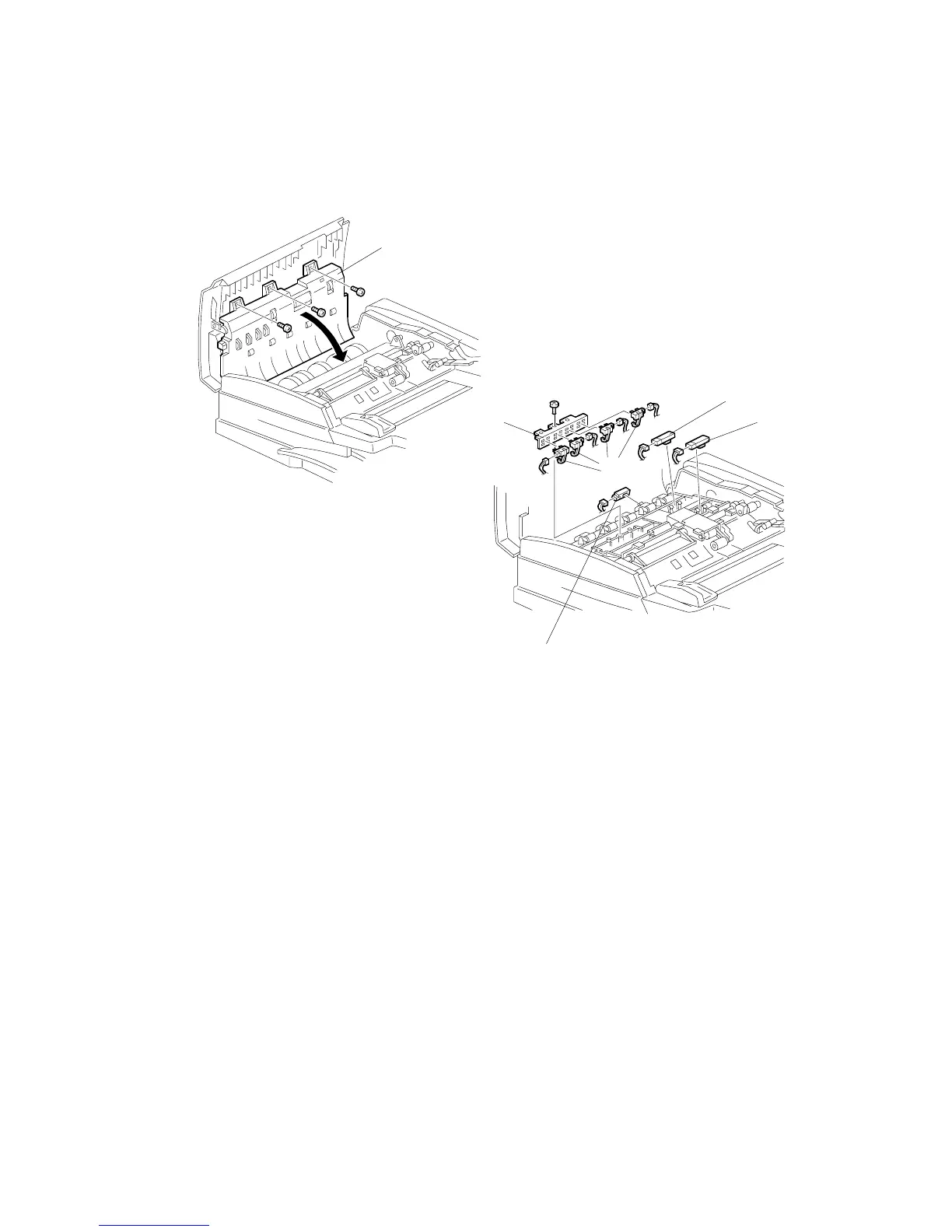

1. Open the top cover.
2. Upper original guide [A] ( x3).
3. Skew correction sensor [B] ( x1)
4. Interval sensor [C] ( x1)
5. Registration sensor [D] ( x1)
6. Original width sensor bracket [E] ( x1,  x4)
7. Original width sensors [F]
