3.16.5 PAPER END SENSOR AND PICK-UP SOLENOID
REPLACEMENT
1. Upper cover (! 3.16.1)
2. Lift paper end feeler [A].
NOTE: Before reinstalling the upper cover, return the paper end feeler to its
original position.
3. Replace paper end sensor [B] ( x1).
4. Pick-up solenoid [C] ( x1, ) x1, spring x1).

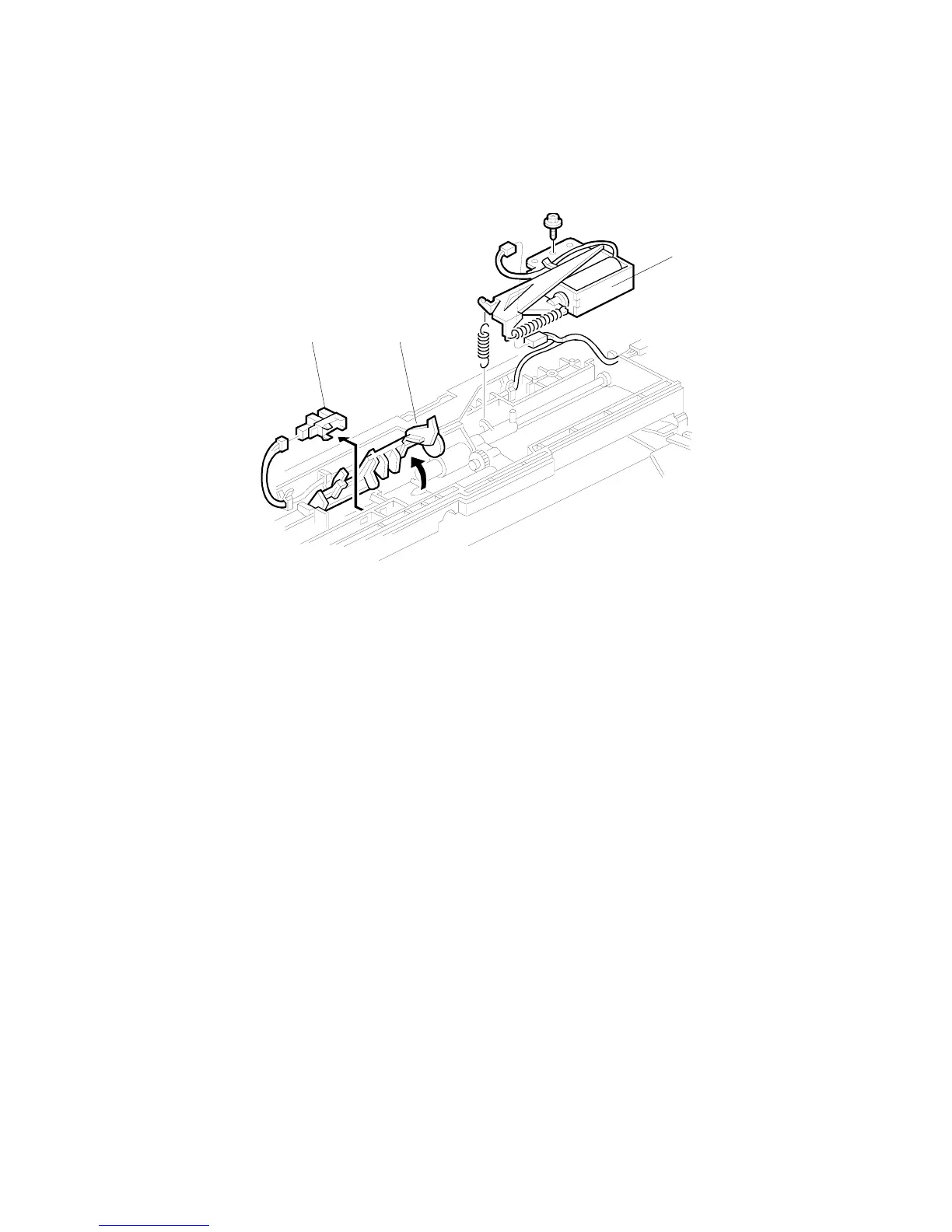

B004R543.WMF
