ORIGINAL LENGTH SENSORS
SM 5 B541
Auto Reverse
Document
Feeder
B541
1.6 ORIGINAL LENGTH SENSORS

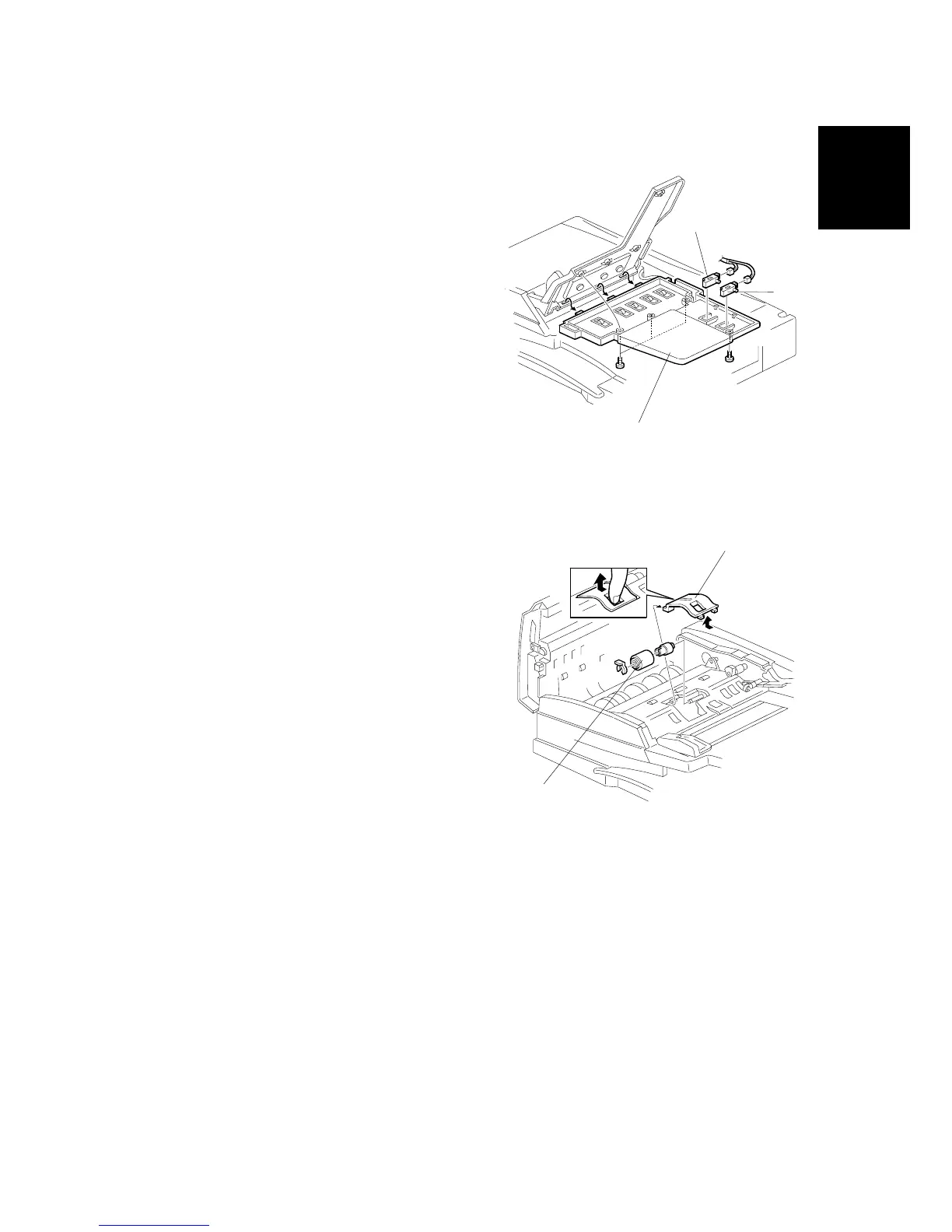

1. Raise the original table.
2. Lower cover of original tray [A] ( x4)
3. Original length sensor-1 [B] ( x1)
4. Original length sensor-2 [C] ( x1)
1.7 SEPARATION ROLLER
1. Original feed unit.(! 1.2)
2. Separation roller cover [A].
3. Separation roller [B] ( x1)
B351R107.WMF
B351R108.WMF
[A]
[B]
[A]
[B]
