Ricoh B079 - Buffer Roller Unit

REMOVAL
B546 24 SM

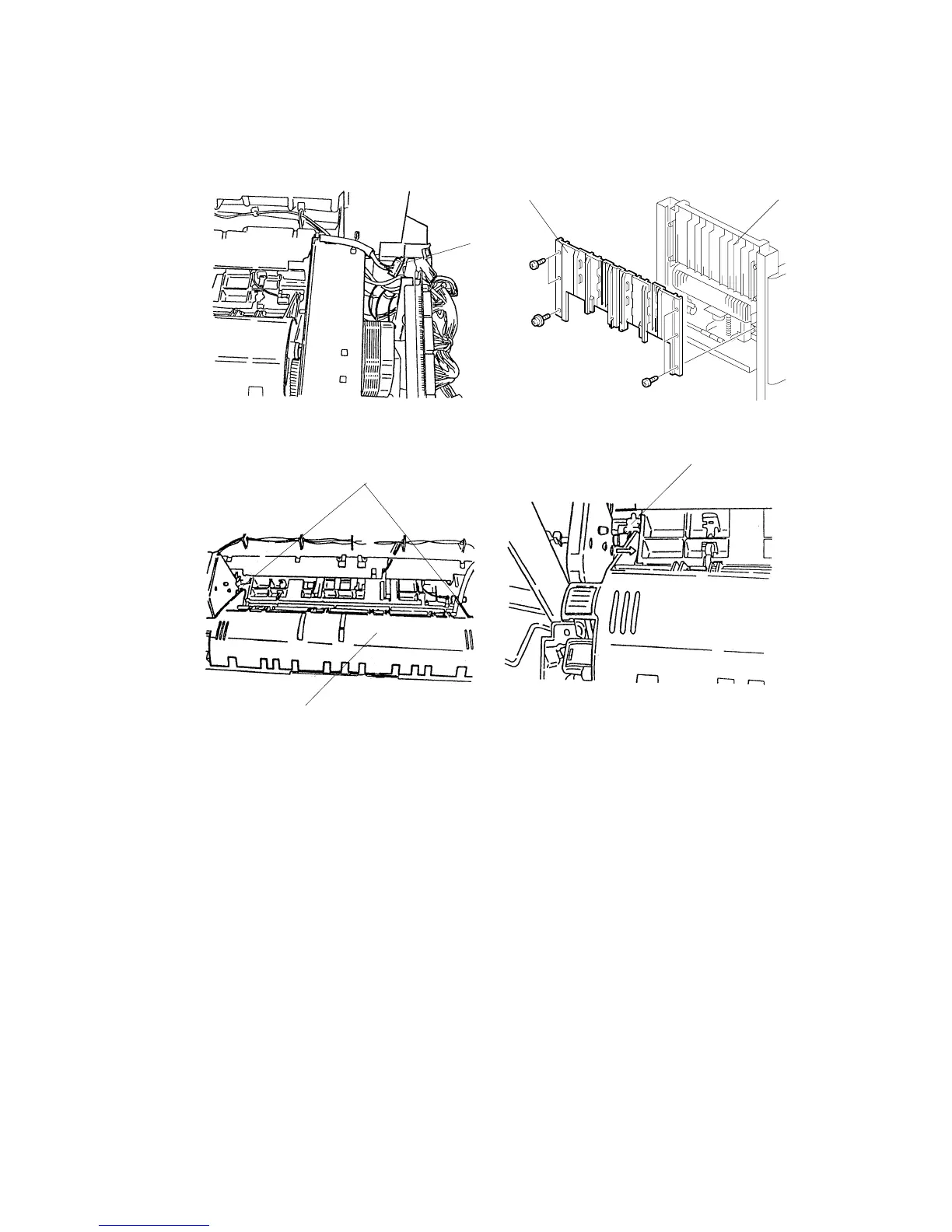

3.1.10 BUFFER ROLLER UNIT
1. Remove the upper rear cover and the top cover.
2. Disconnect the connector [A].
3. Remove the upper shift guide [B] (
 x 6) and the guide holder [C] ( x 2).
4. Unhook the shafts [D], and remove the buffer roller unit [E] (2 clamps).
B546R583.PCX
B546R112.WMF
B546R585.PCX
B546R584.PC
X
[A]
[D]
[B]
[C]
[D]
[E]
