JUNCTION GATE MECHANISM
B546 2 SM
2. DETAILED DESCRIPTIONS
2.1 JUNCTION GATE MECHANISM
2.1.1 SHIFT TRAY MODE

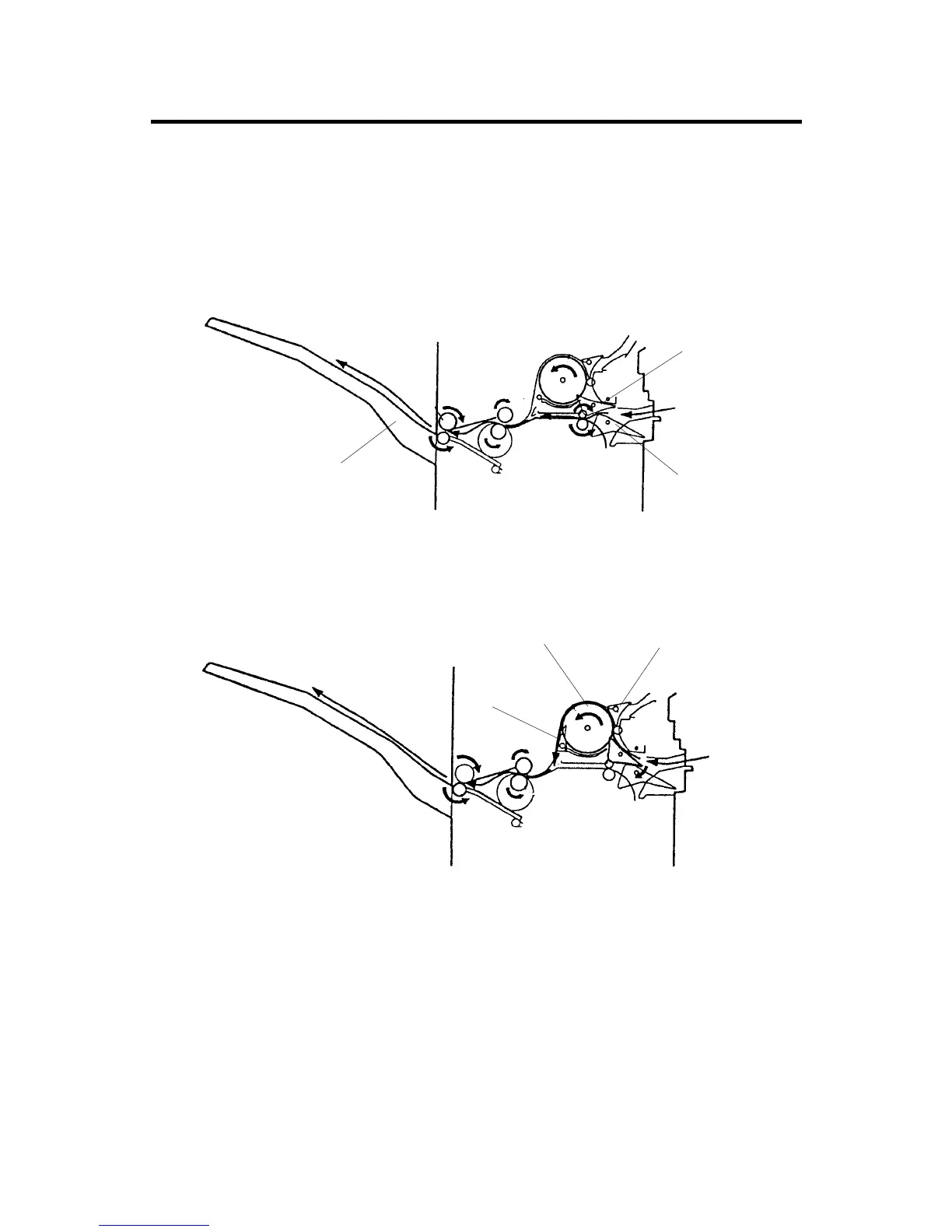

A4/LT sideways or shorter
The booklet gate [A] and buffer roller entrance gate [B] are closed and the copy
paper goes directly to the shift tray [C].
Longer than A4 sideways
The booklet gate, proof tray gate [D], and buffer roller exit gate [E] are closed, and
the buffer roller entrance gate is opened. The copy paper passes through the buffer
roller [F]. This paper path creates a distance between copies.
B546D564.PC
X
B546D565.PCX
[A]
[B]
[C]
[D]
[E]
[F]
