PAPER FEED
B079/B082 3-42 SM
3.14 PAPER FEED

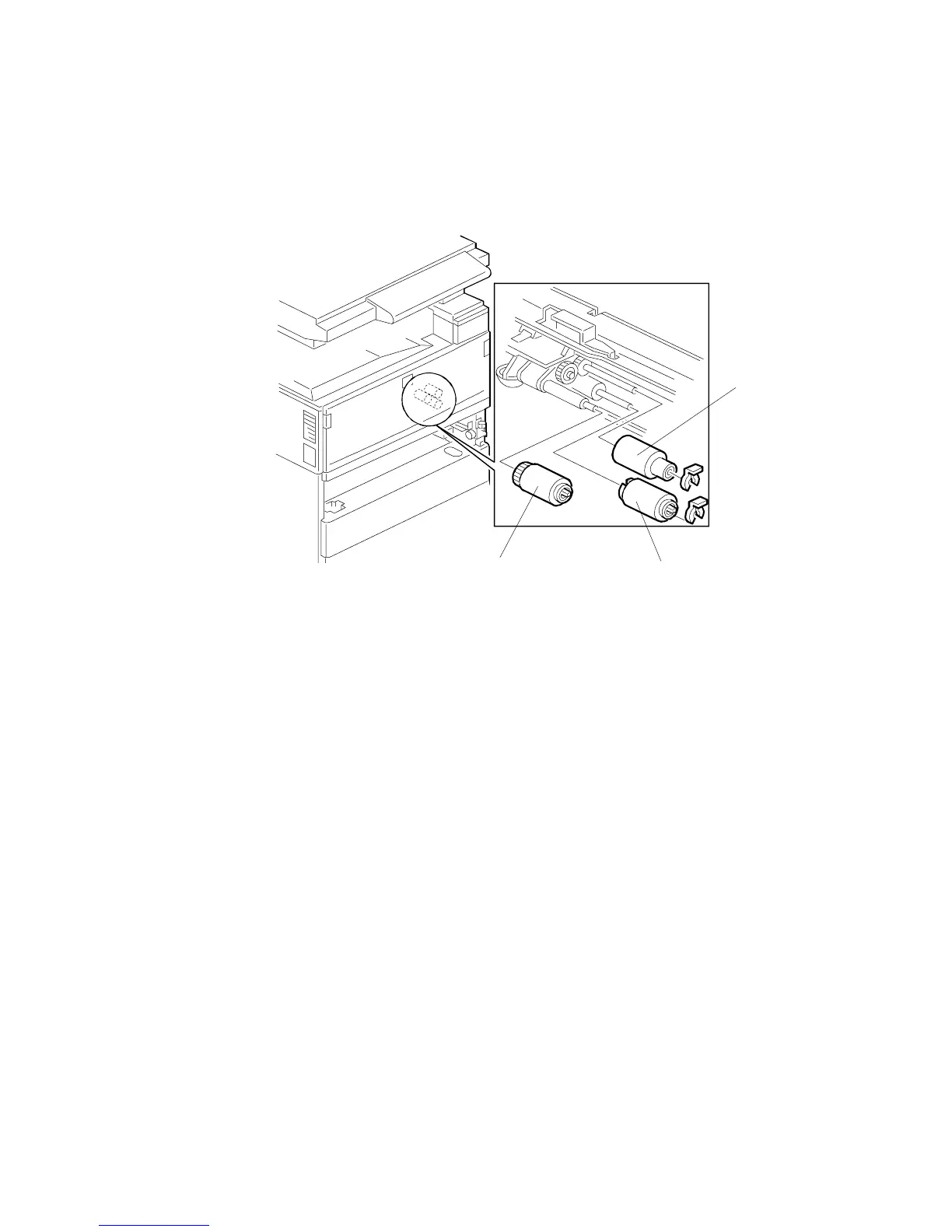

3.14.1 PICK-UP, SEPARATION, AND FEED ROLLERS
1. Paper tray
2. Pick-up roller [A]
3. Feed roller [B] ( x 1)
4. Separation roller [C] ( x 1)
NOTE: Do not touch the roller surface with bare hands. After installing the new
rollers, do SP 7-816 for the appropriate paper tray.
B004R918.WMF
[A]
[B]
[C]
