Ricoh B079 - Paper End Detection

Detailed
Descriptions
PAPER FEED
SM 6-71 B079/B082
6.11.5 PAPER END DETECTION
If there is paper in the paper tray, the
paper end feeler [A] is raised by the
paper stack, and the paper end sensor
[B] is deactivates.
When the paper tray runs out of paper,
the paper end feeler drops into the
cutout [C] in the tray bottom plate and
the paper end sensor is activated.

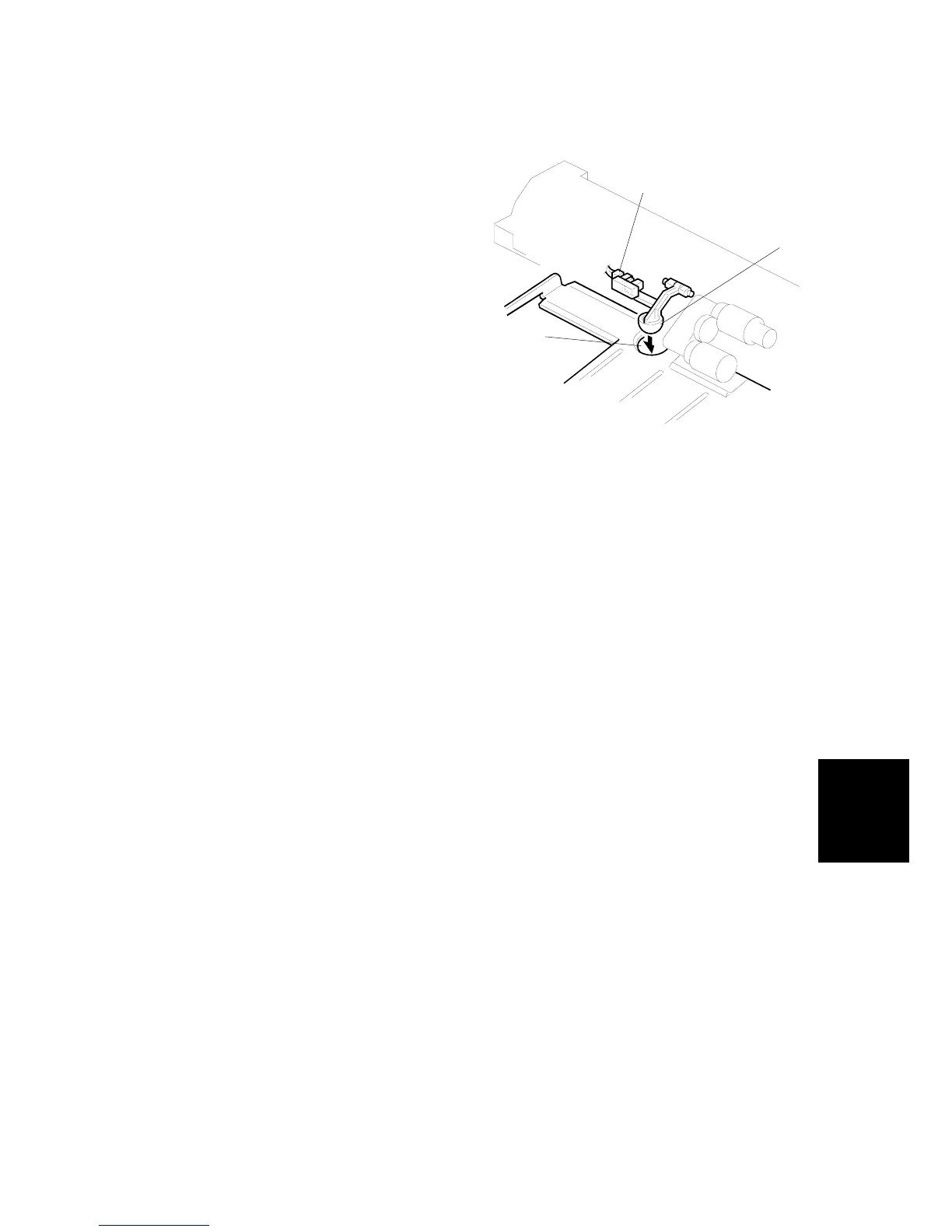

B004D706.WMF
[A]
[B]
[C]
