Ricoh B079 - Registration Sensor

PAPER FEED
B079/B082 3-48 SM

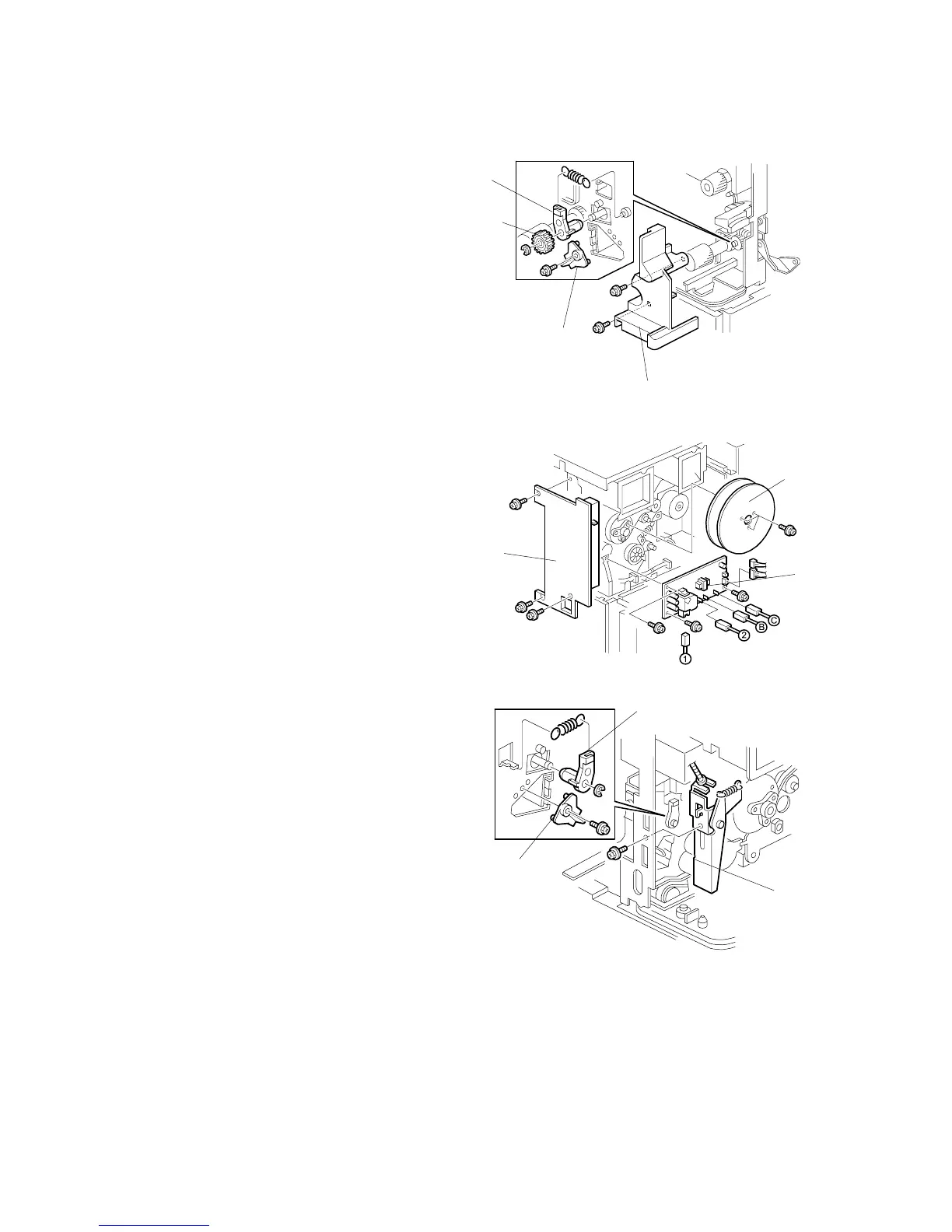

3.14.7 REGISTRATION SENSOR
1. Front door (! 3-3)
2. Rear upper cover (! 3.7.1)
3. Right door and transfer belt unit
(!3.5, 3.13.1
4. PCU (! 3.11.1)
5. Development unit (! 3.12.1)
6. Inner cover [A] ( x2)
7. Front registration holder [B] ( x1)
8. Front registration roller gear [C] ( x1)
9. Registration roller bushing [D] (Spring x 1)
10. High voltage power supply board [E]
( x3,  x6)
11. Flywheel [F] ( x3)
12. Right rear cover [G] ( x3)
13. Right cover switch bracket [H] ( x1)
14. Rear registration holder [I] ( x1,
spring x1)
15. Registration roller bushing [J] ( x1)
B004R932.WMF
B004R972.WMF
B004R933.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
[H]
[I]
[J]
