Ricoh B079 - Lower Paper Feed Unit for Tray 2

PAPER FEED
B079/B082 3-46 SM

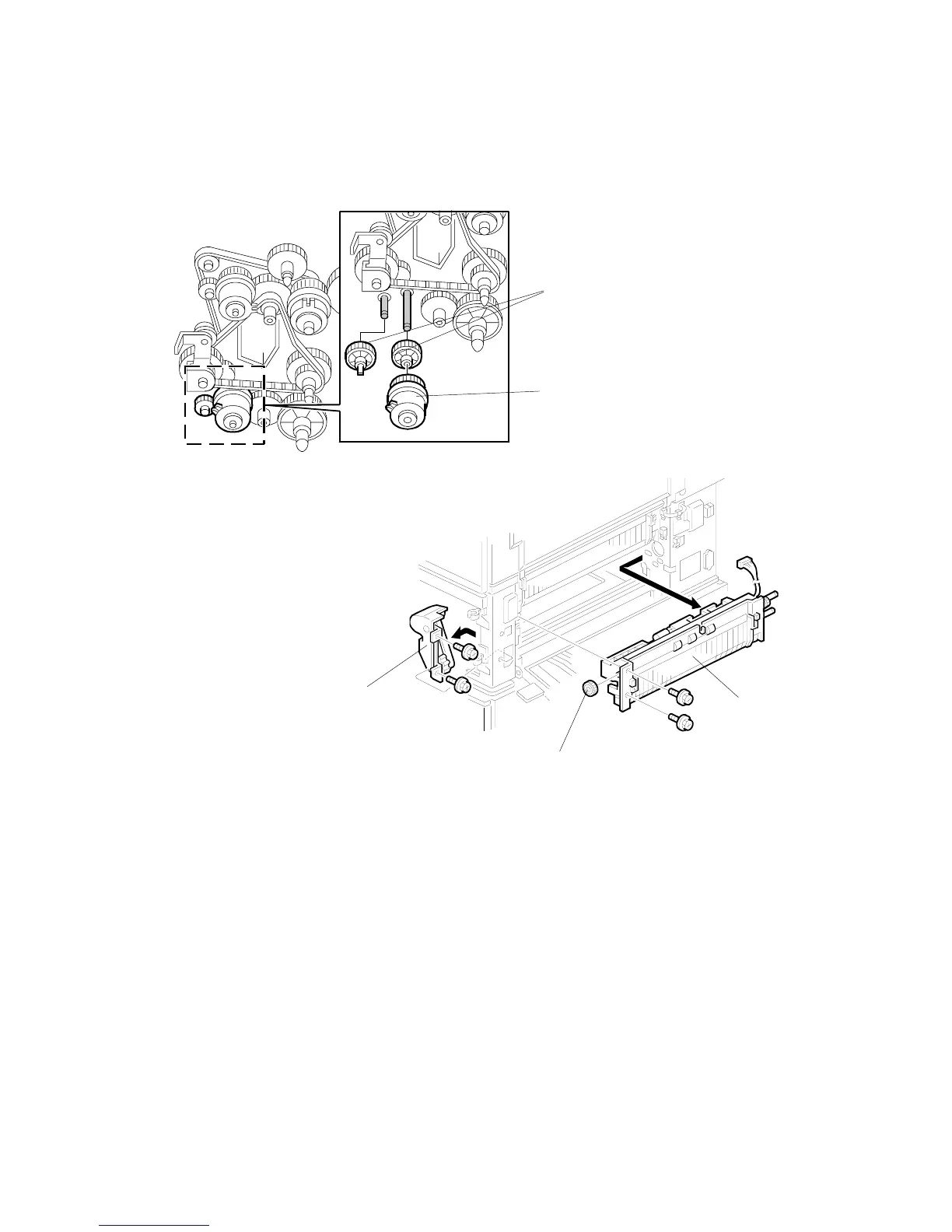

3.14.5 LOWER PAPER FEED UNIT FOR TRAY 2
1. Lower the paper trays
2. Right lower cover (!3.14.2)
3. Remove the lower paper feed clutch [A] (! 3.14.3)
4. Relay gears [B] (x3)
5. Cover [C] ( x2)
6. Gear [D] (x1)
7. Lower paper feed unit [E] ( x2,  x1)
B004R913.WMF
B004R974.WMF
[A]
[B]
[C]
[D]
[E]
