Ricoh B079 - Paper FEED UNIT REPLACEMENT

PAPER FEED UNIT REPLACEMENT
B542 16 SM
4.5 PAPER FEED UNIT REPLACEMENT
1. Remove the rear cover.
2. Remove the upper and lower paper feed clutch holder.
3. Remove the gear holder.

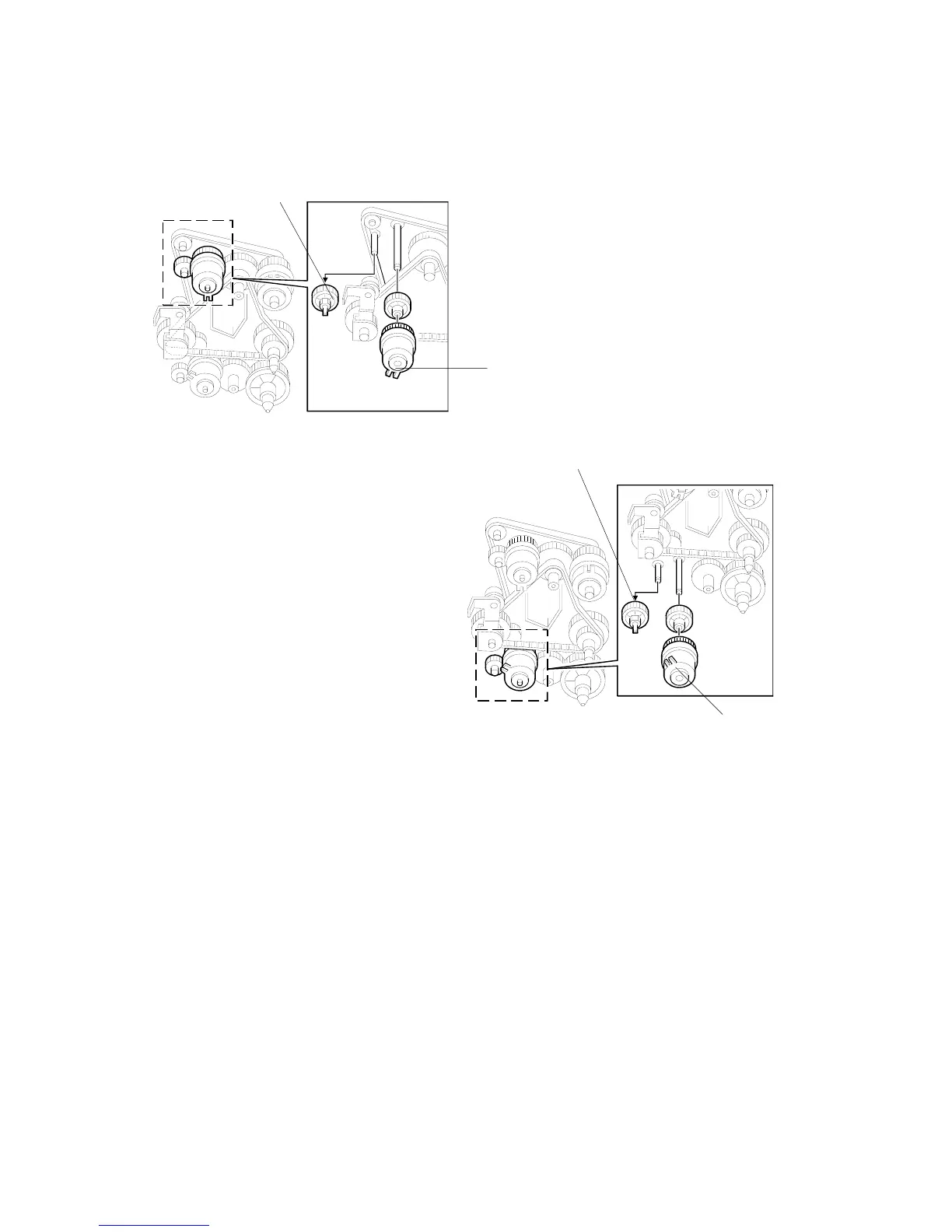

4. Remove the upper feed clutch [A] or lower feed clutch [B].
5. Remove the upper or lower gear [C, D].
A682R504.WMF
A682R505.WMF
[C]
[A]
[B]
[D]
