Replacement
Adjustment
SM 3-69 B079/B082

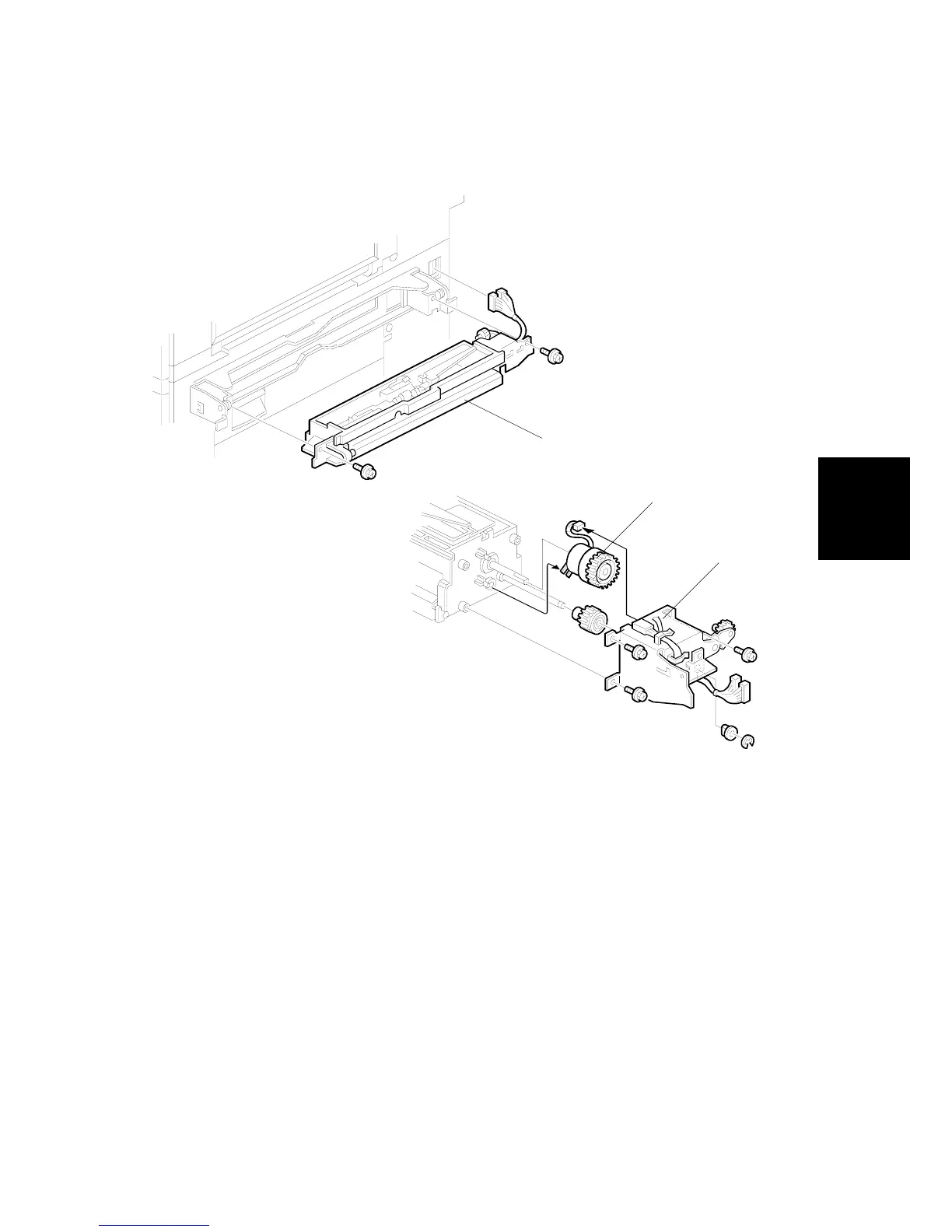

3.16.8 PAPER FEED CLUTCH REPLACEMENT
1. By-pass tray.
2. Paper feed unit [A] ( x2, x2)
3. Rear bracket [B] ( x4, clip x1, bushing x1)
4. Paper feed clutch [C] ( x1)
A
689R506.WMF
A689R507.WMF
[A]
[C]
[B]
CÓPIA NÃO CONTROLADA
CÓPIA NÃO CONTROLADA
