PLATEN COVER INSTALLATION (G329)
B079/B082 1-52 SM
1.12 PLATEN COVER INSTALLATION (G329)

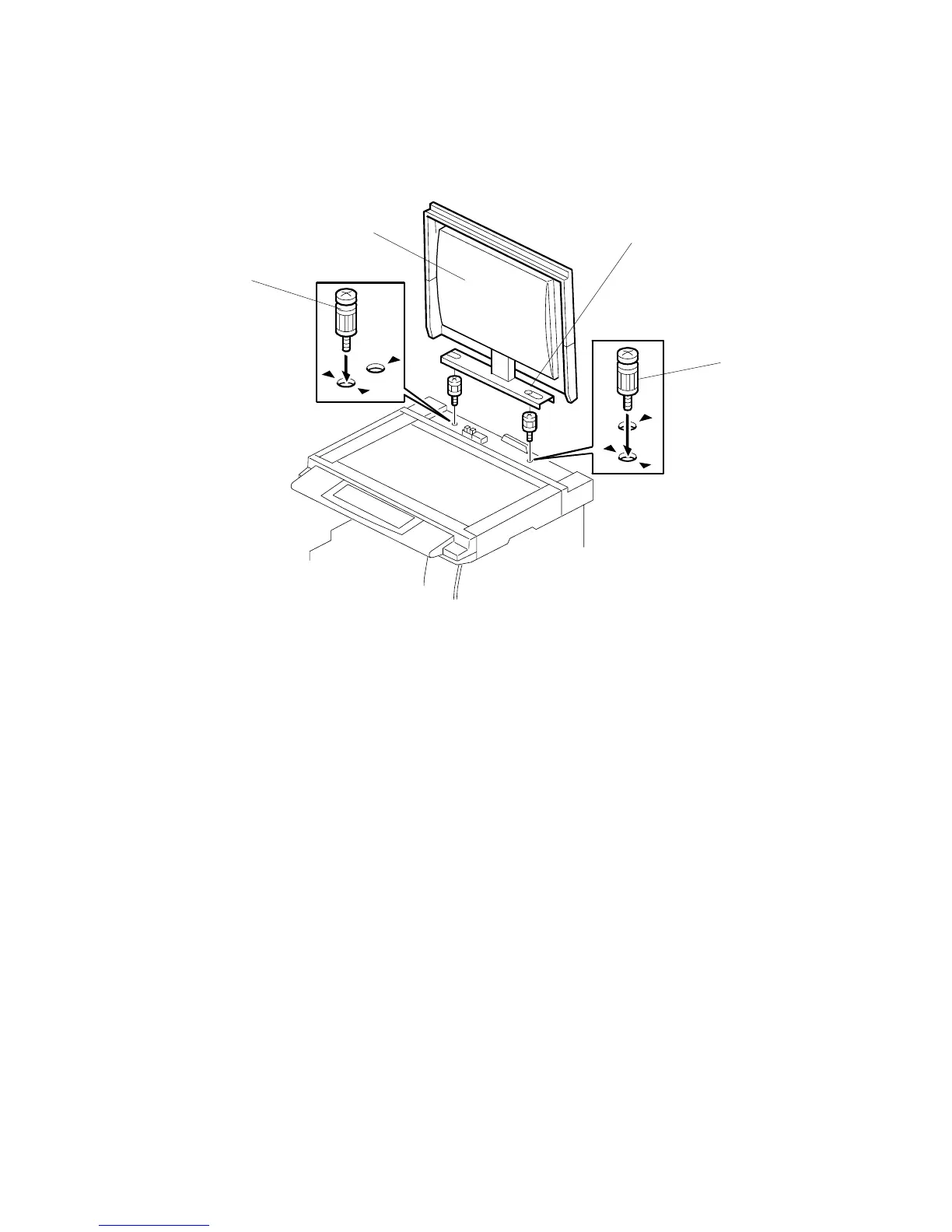

1. Install [A] ( x 2) on the top cover as shown.
2. Position the platen cover bracket [B] on the heads of the stud screws and slide
the platen cover [C] to the left.
B079I904.WMF
[B]
[C]
[A]
[A]
