SCANNER UNIT
B079/B082 3-10 SM

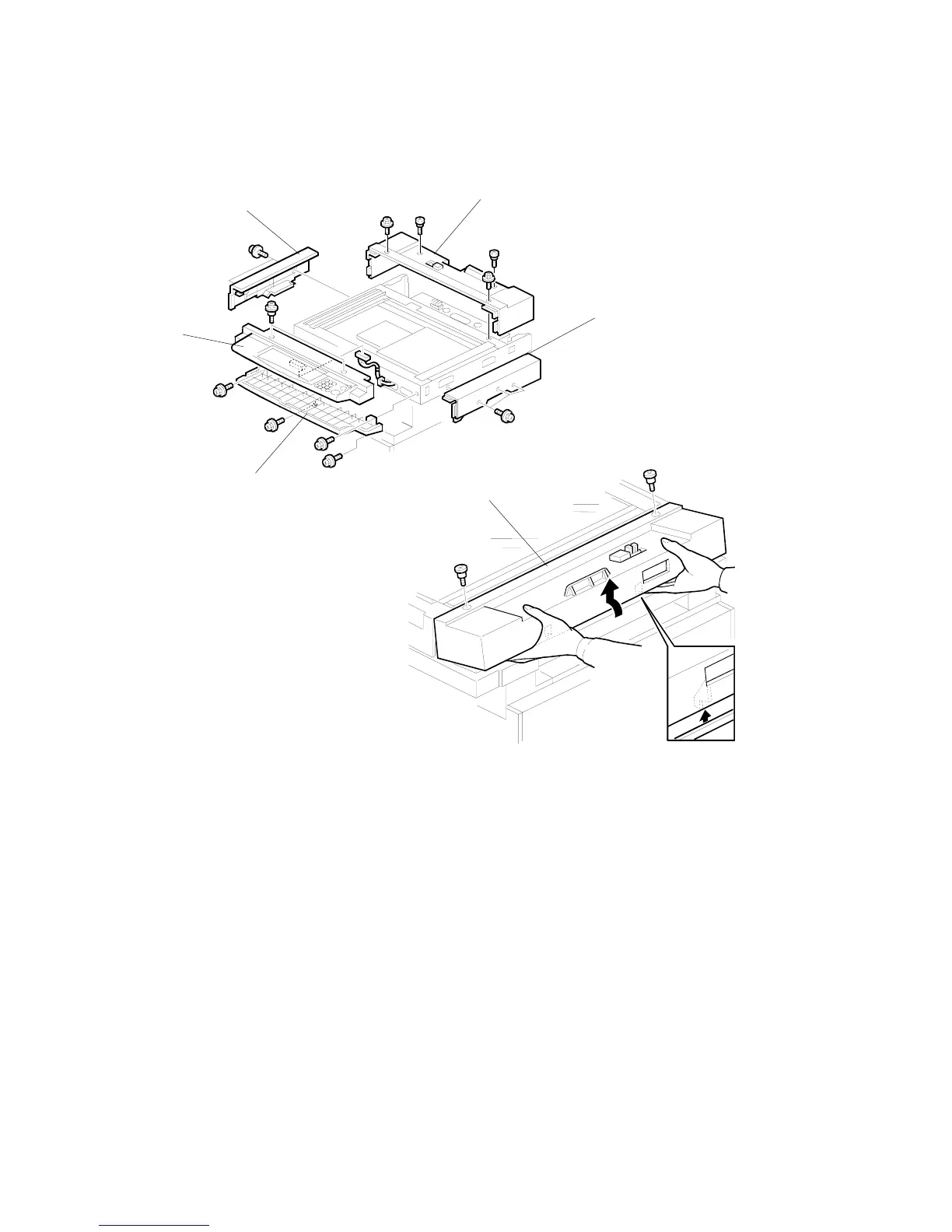

3.9.3 SCANNER EXTERIOR PANELS/OPERATION PANEL
1. ARDF (! 3.9.1)
2. Exposure glass and DF exposure glass(! 3.9.2)
3. Operation panel [A] ( x2,  x1)
4. Operation panel base [B] ( x4)
5. Rear cover [C] ( x4). Carefully lift in the direction of the arrow to disconnect
the tab.
6. Right cover [D] ( x3 )
7. Left cover [E] ( x2)
B004R108.WMF
B004R115.WMF
[A]
[B]
[C]
[D]
[E]
[D]
