Ricoh B079 - Duplex Unit; Front Door

Replacement
Adjustment
FRONT DOOR
SM 3-3 B079/B082

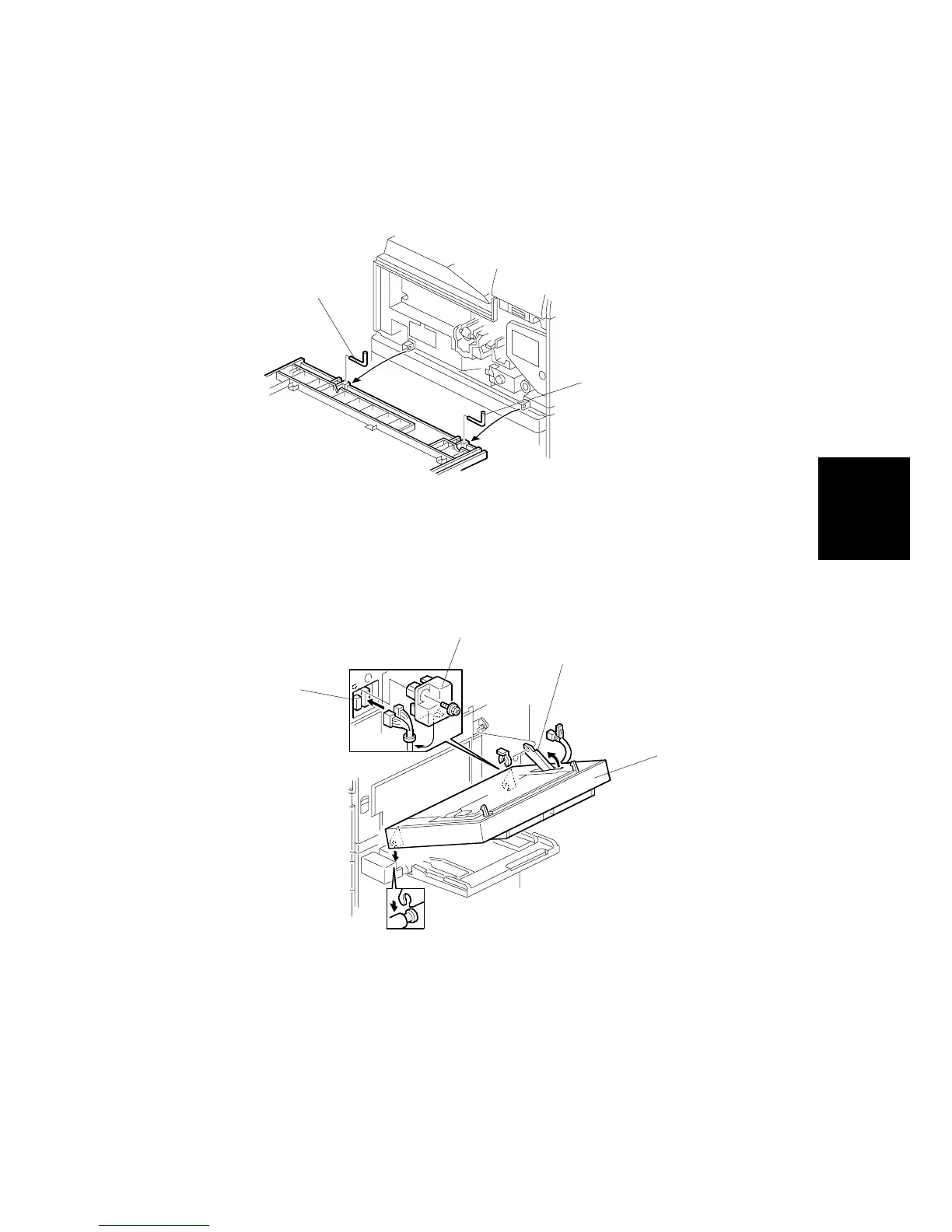

3.3 FRONT DOOR
1. Open front door.
2. Front door. Left pin [A], right pin [B].
3.4 DUPLEX UNIT
1. Connector cover [A] ( x1)
2. Duplex connectors [B] ( x2)
3. Duplex support arm [C] ( x1)
4. Duplex unit [D]
NOTE: Grip the duplex unit with both hands, slowly rotate it towards you and
then lift up.
B004R951.WMF
B004R003.WMF
[A]
[B]
[C]
[D]
[A]
[B]
