Ricoh B079 - Fusing Roller;Pressure Roller

Replacement
Adjustment
FUSING UNIT
SM 3-57 B079/B082
3.15.6 FUSING ROLLER/PRESSURE ROLLER
1. Fusing unit (! 3.15.1)
2. Fusing upper and lower cover. (! 3.15.3, 3.15.4)
3. Fusing lamp. (! 3.15.4)

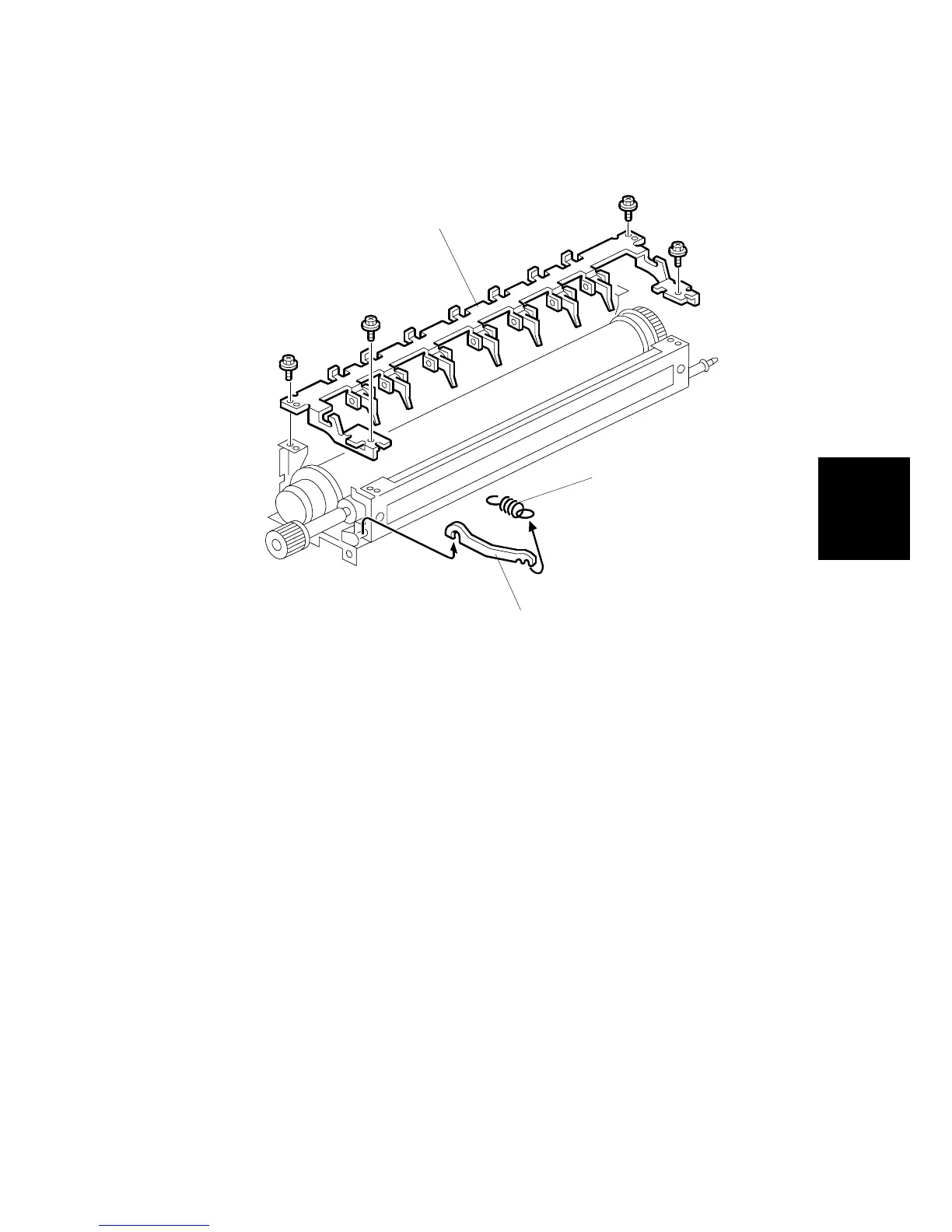

4. Springs x2 [A] (both sides)
5. Arms x2 [B] (both sides)
6. Pawl bracket [C] ( x4)
B004R608.WMF
[A]
[B]
[C]
