Ricoh B079 - By-Pass Table Removal

B079/B082 3-68 SM

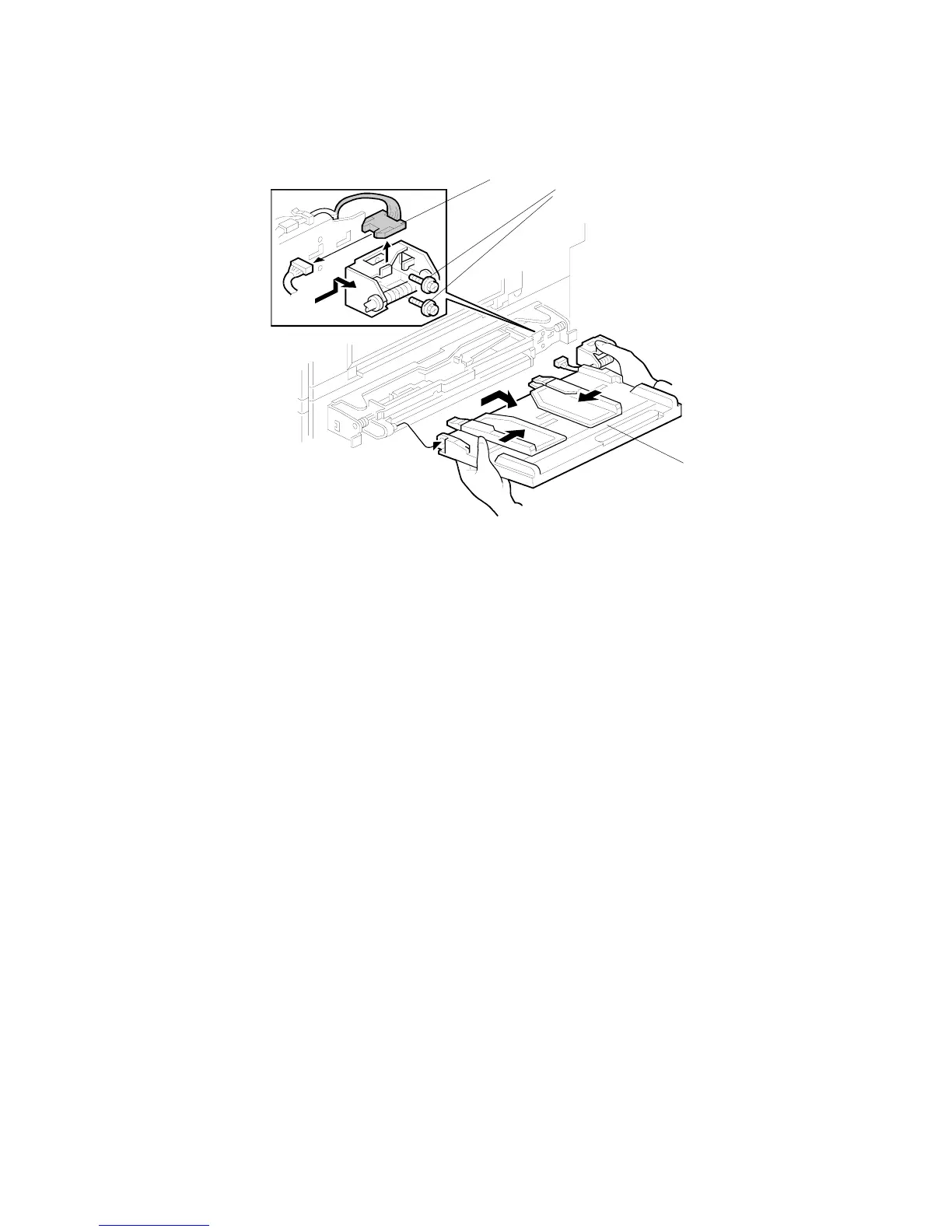

3.16.7 BY-PASS TABLE REMOVAL
1. Hinge cover (! 3.16.1)
1. Harness [A] ( x1).
2. Screws [B] ( x2)
3. Retard spring bracket and remove the by-pass table [C].
CAUTION: To relieve pressure on the spring during removal, depress it as shown
in the illustration.
B004R505.WMF
[A]
[C]
[B]
