Ricoh B079 - Image Fusing and Paper Exit

Detailed
Descriptions
IMAGE FUSING AND PAPER EXIT
SM 6-89 B079/B082
6.15 IMAGE FUSING AND PAPER EXIT

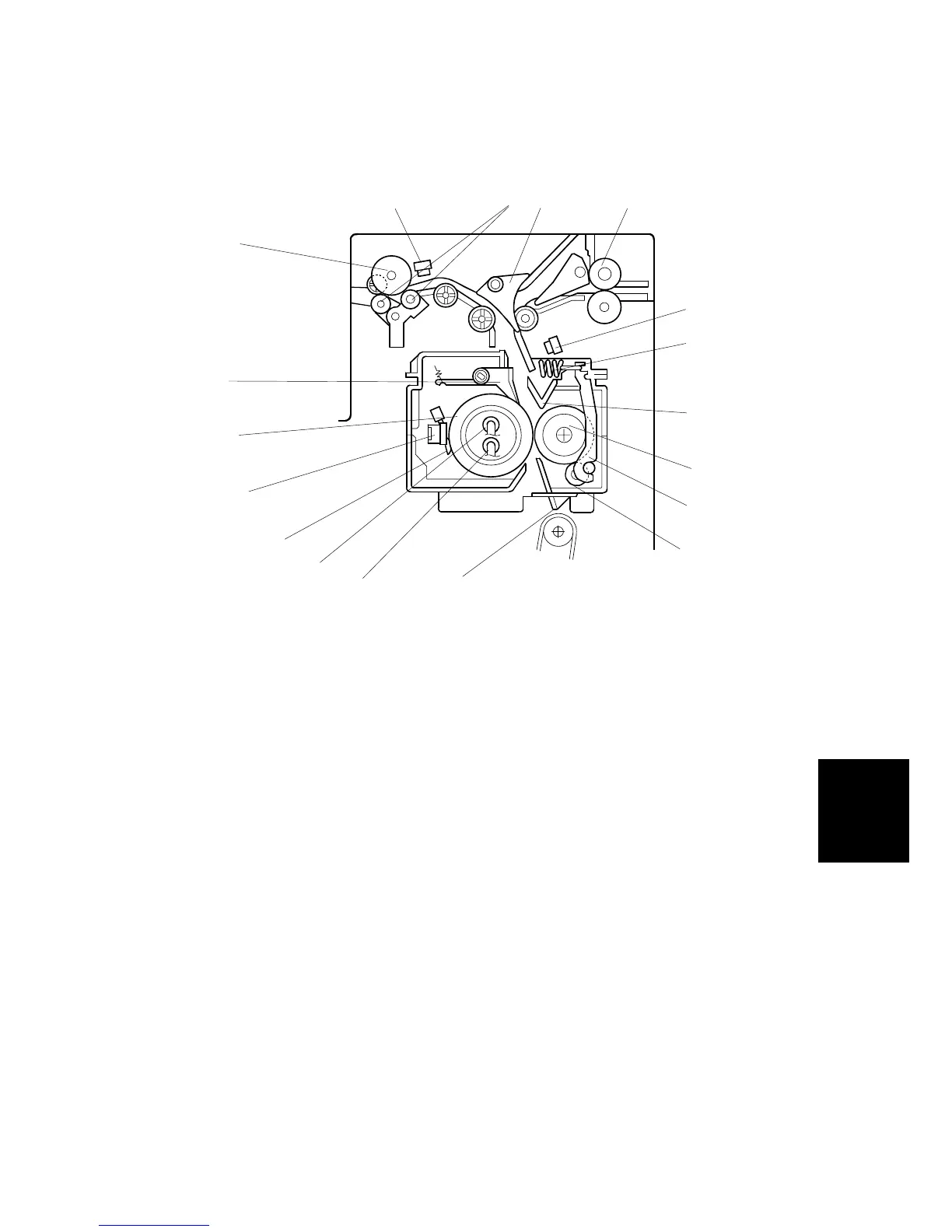

6.15.1 OVERVIEW
1 Paper exit sensor 10 Cleaning roller
2 De-curler rollers 1, 2 11 Entrance guide
3 Junction gate 12 Fusing lamp (center)
4 Idle roller (duplex unit) 13 Fusing lamp (ends)
5 Fusing unit exit sensor 14 Thermistors (central/end)
6 Spring 15 Thermostat (central/end)
7 Fusing exit guide plate 16 Hot roller
8 Pressure roller 17 Hot roller strippers
9 Pressure arm 18 Exit roller
B004D601.WMF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
