Ricoh B079 - Polygon Mirror Motor

LASER UNIT
B079/B082 3-24 SM

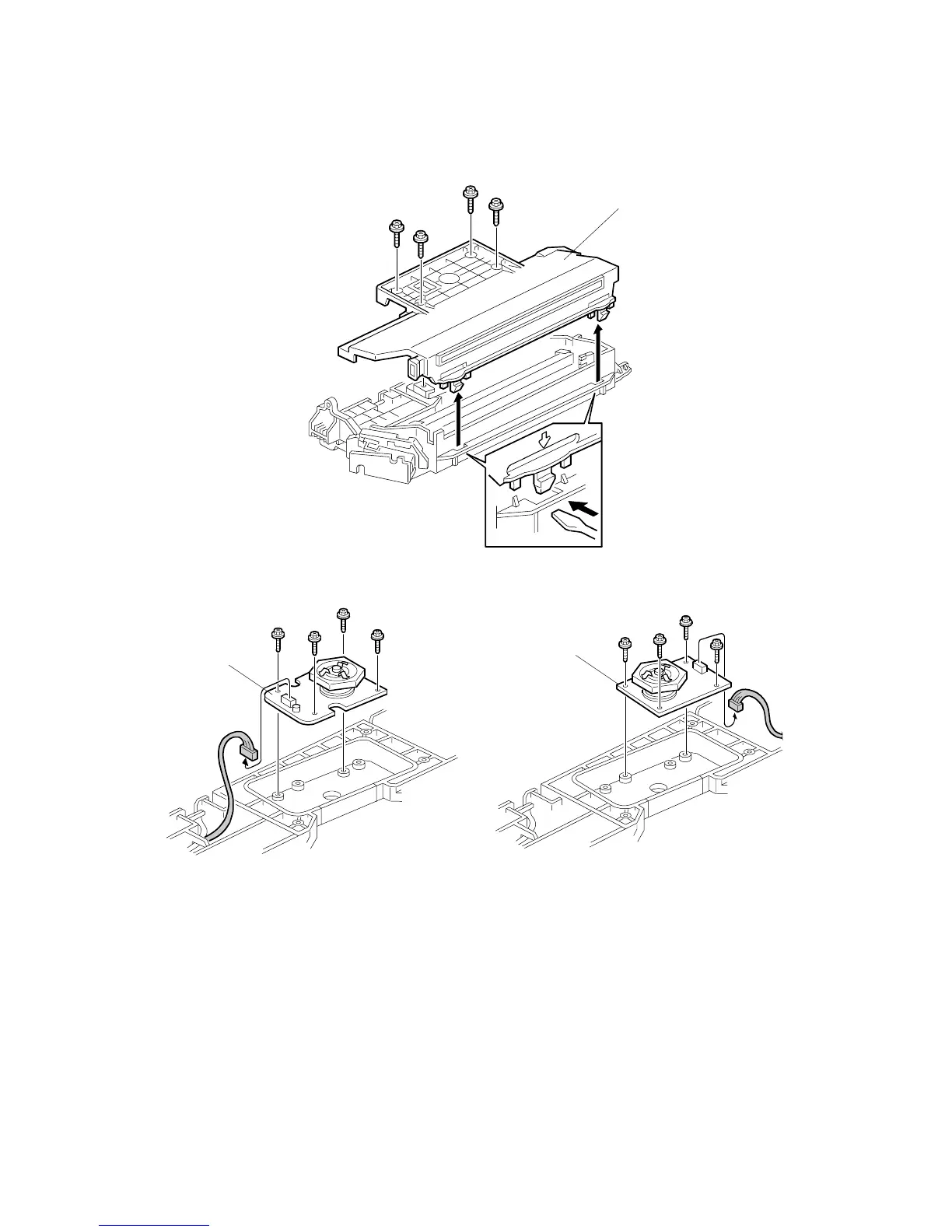

3.10.3 POLYGON MIRROR MOTOR
1. Laser unit (! 3.10.2)
2. Laser unit cover [A] ( x4, 2 hooks)
3. Polygon mirror motor [B] ( x4,  x1)
4. After replacing the motor, do the image adjustment. (! 3.21)
B004R903.WMF
B004R201.WMF
B004R202.WMF
[A]
[B]
[B]
– 45 cpm machine–
– 35 cpm machine–
